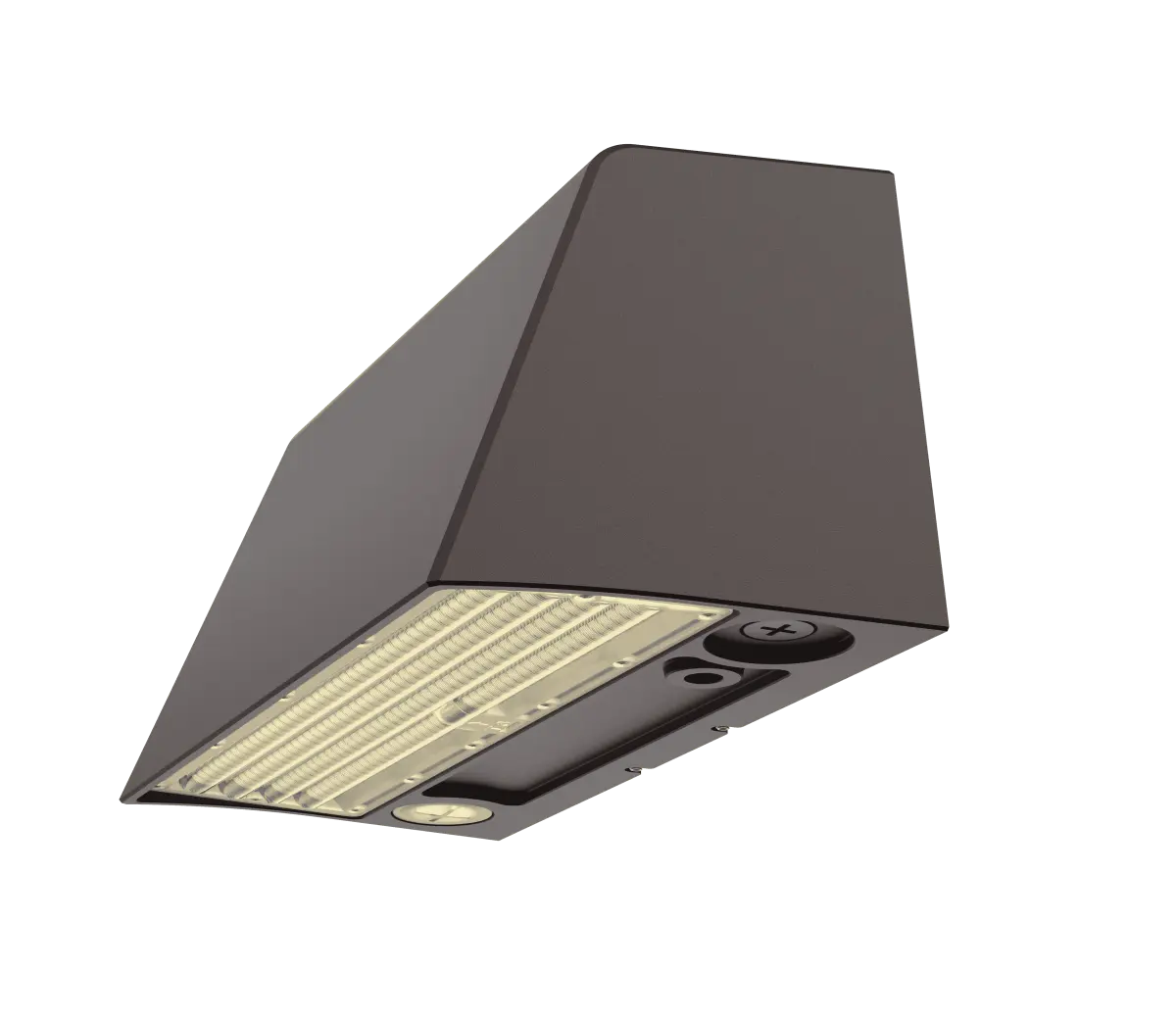

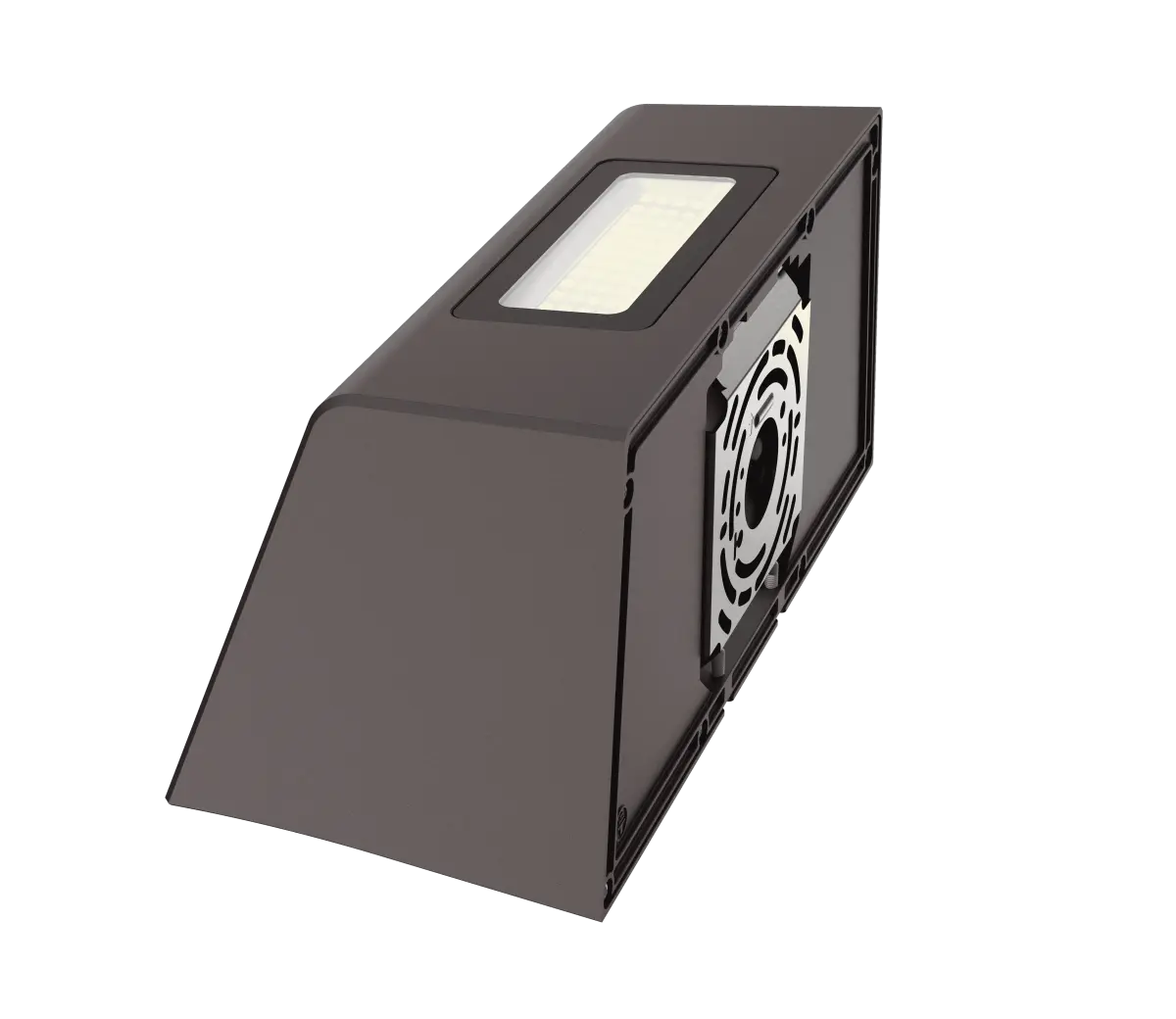

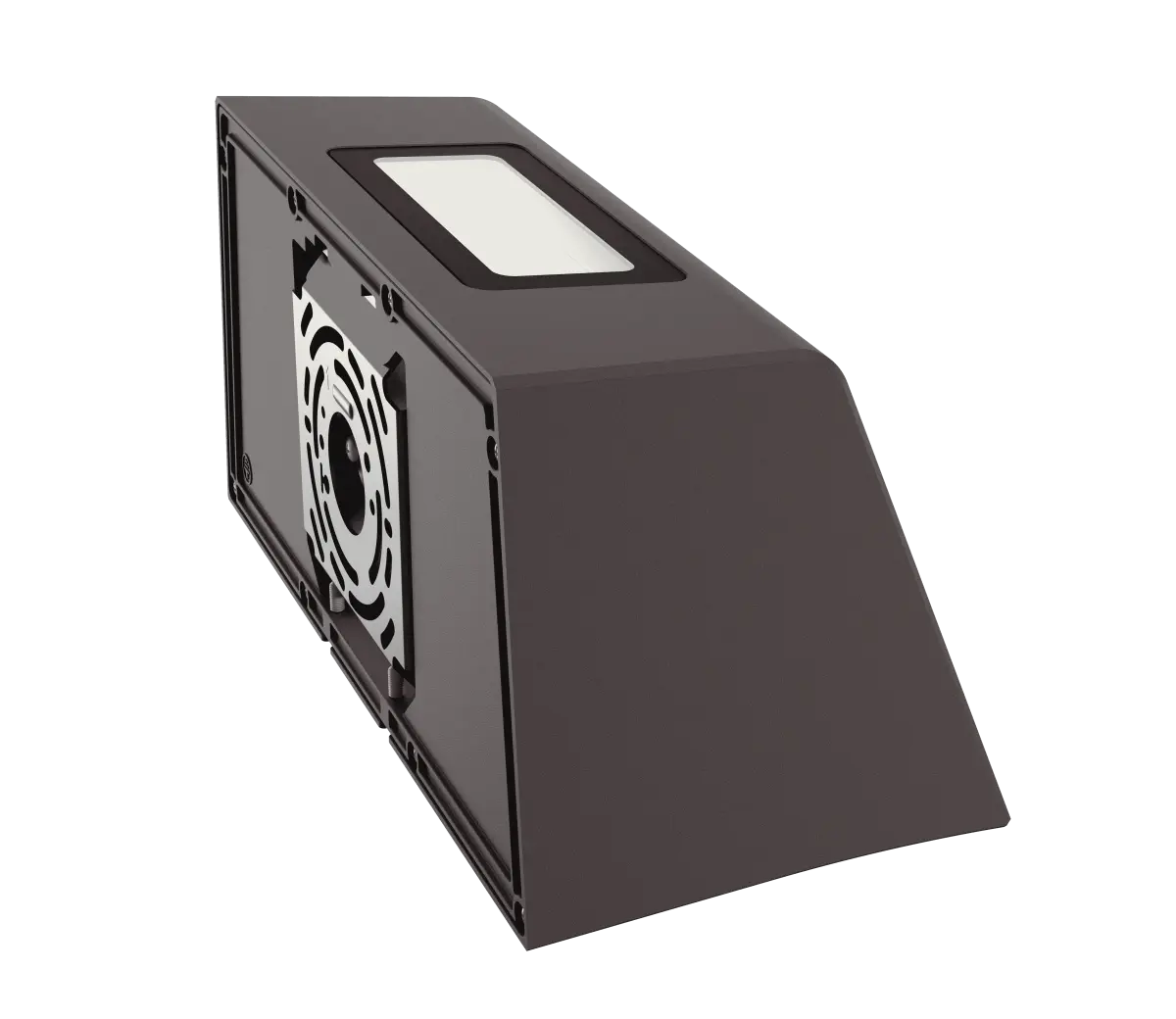

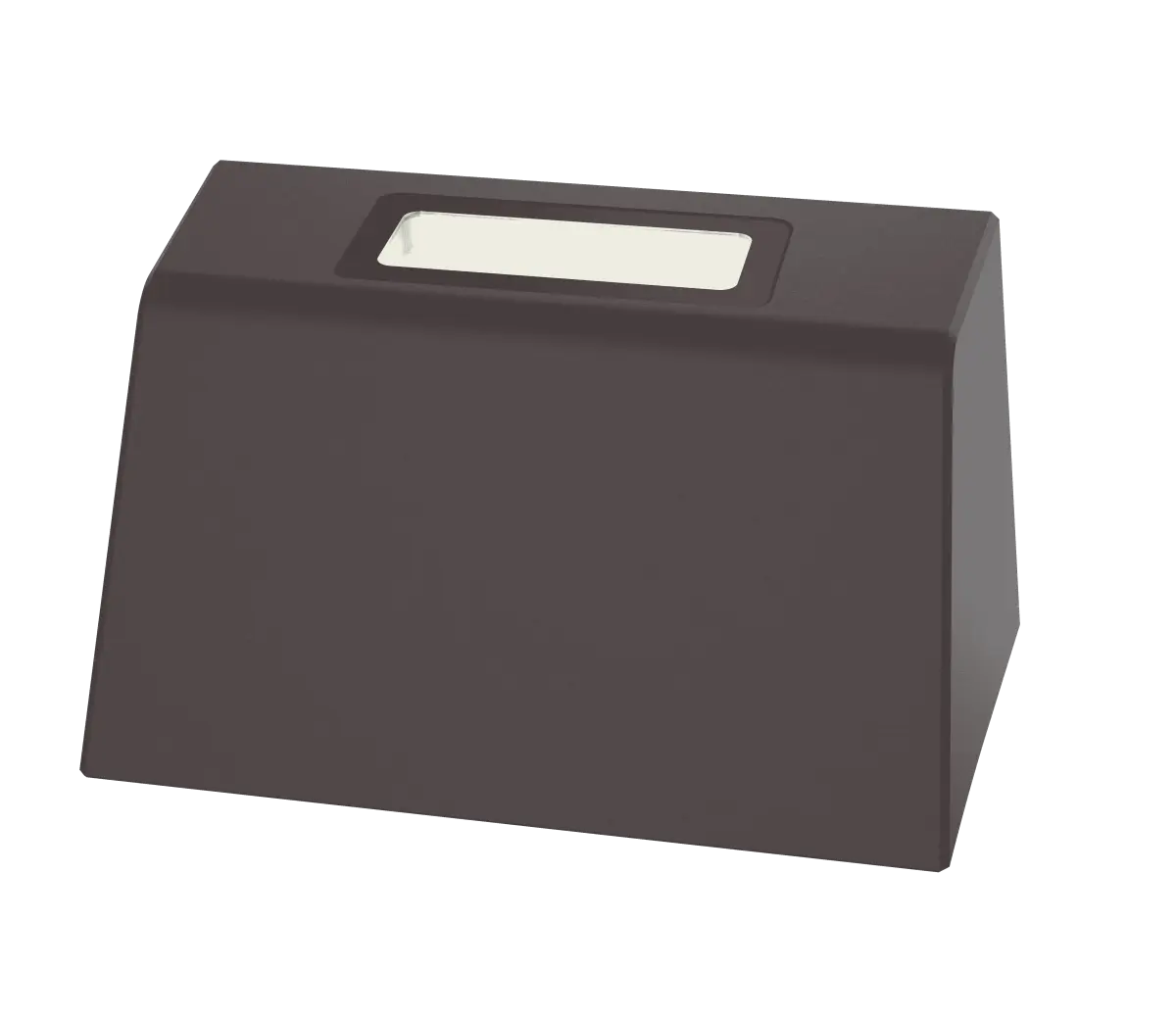

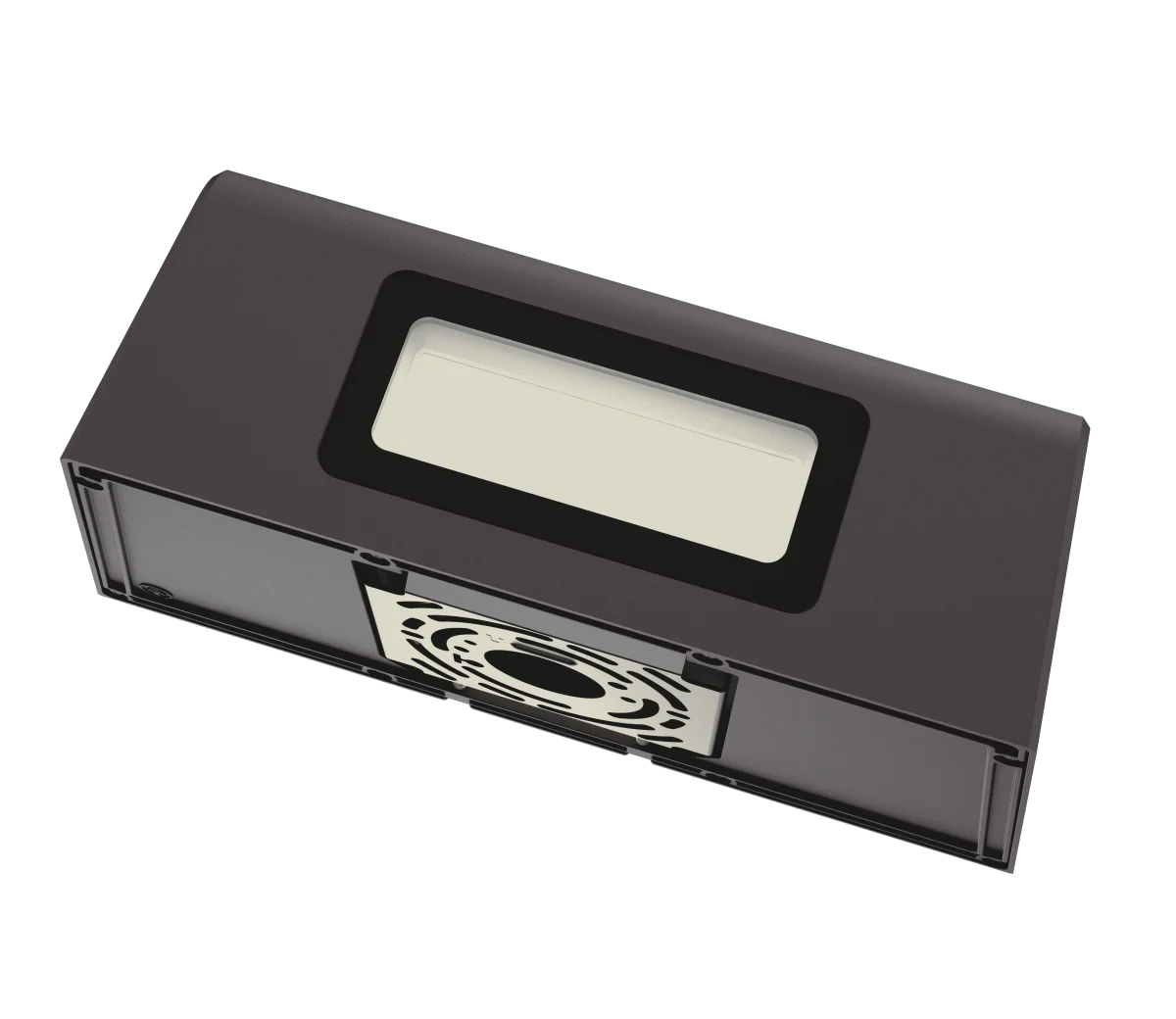

LED Architectural Wall Pack – G2 Series

Description

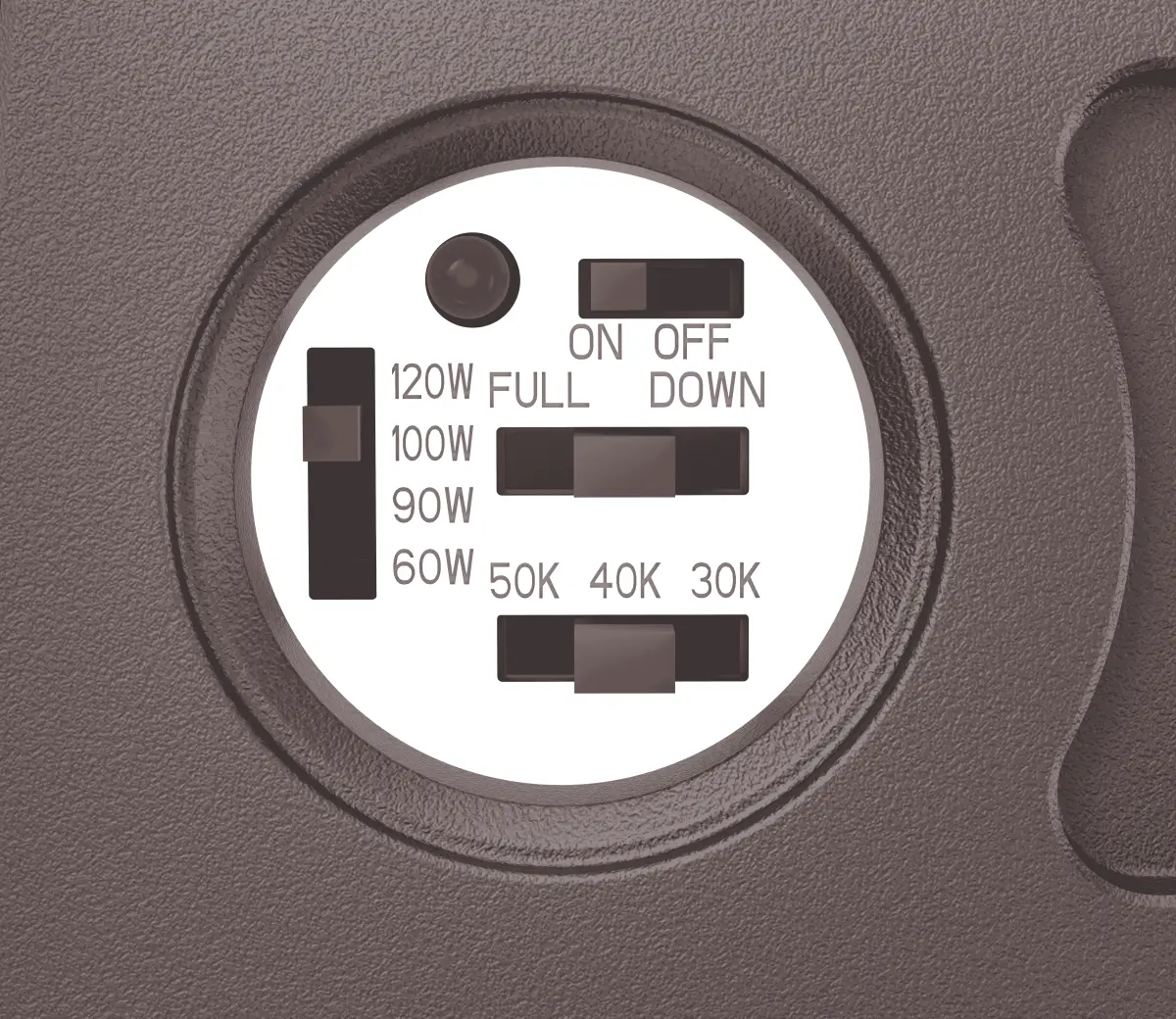

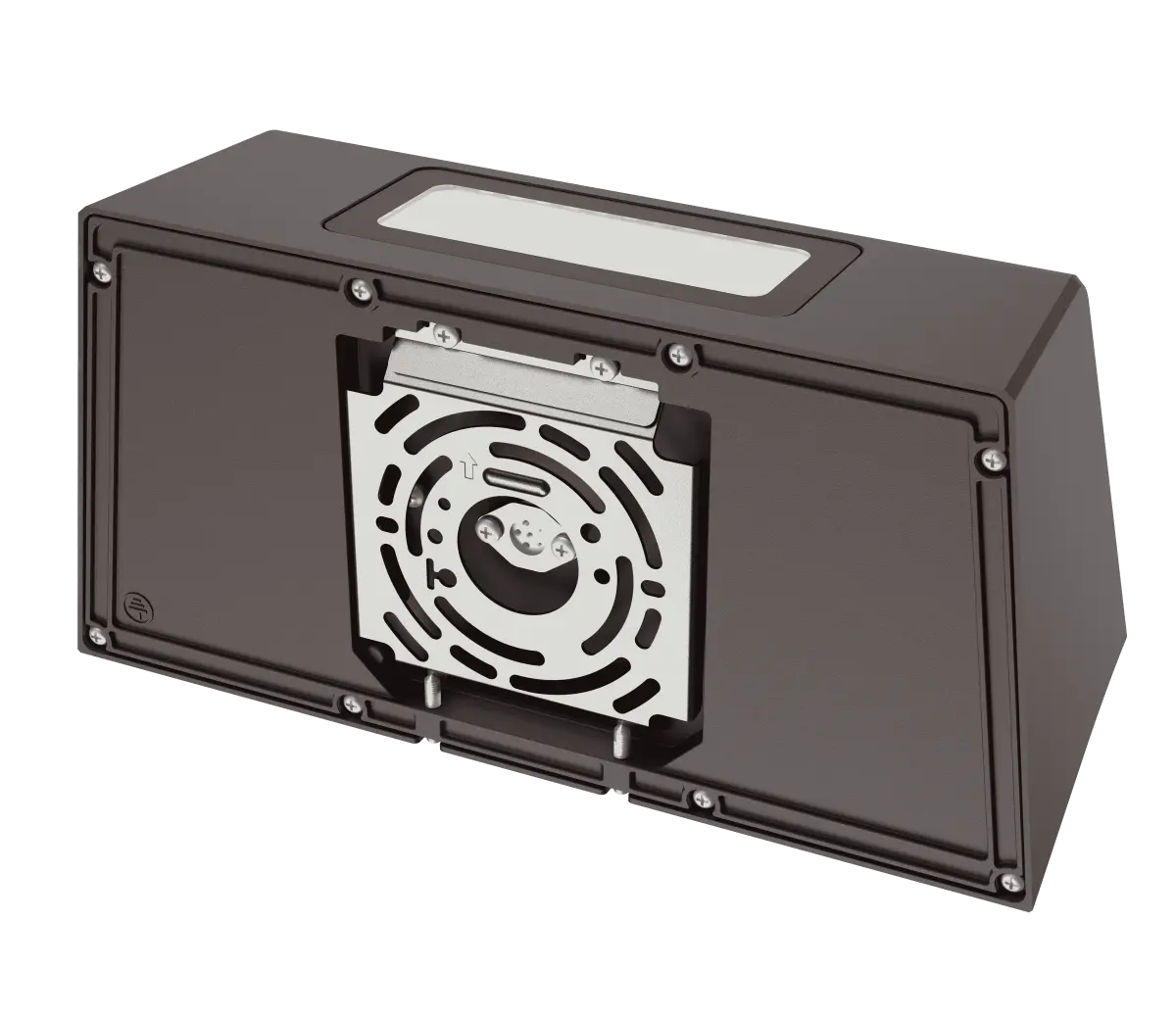

The LED Architectural Wall Pack Series (G2, G3, G4) offers a modern lighting solution for decorative and functional exterior illumination. Available in three architectural designs—Trapezoid, Radius, and Quartersphere—this fixture provides versatility for hospitality, commercial, and residential environments. Its 4-in-1 field-selectable system allows adjustment of: Lighting Direction: Up & Down or Down-only CCT: 3000K / 4000K / 5000K Wattage: 60W / 90W / 100W / 120W Photocell: ON/OFF (D2D) With high performance up to 150 lm/W, durable die-cast aluminum construction, Type III distribution, and IP65 waterproof protection, these wall packs deliver reliable, efficient, and visually appealing illumination. Optional microwave motion sensors further enhance energy savings. Additional Specifications Electrical: LED Type: SMD2835 THD: <20% Power Factor: ≥0.90 Surge Protection: 6kV (L/N & L/N-P) Frequency: 50/60Hz Construction: Housing: ADC12 Die-cast aluminum Lens: Polycarbonate Finish: Bronze (default), custom colors optional Mounting Plate included IP Rating: IP65 Operating Temperature: −40°F to 122°F Lifetime: L70 > 50,000 hrs Dimensions (All Shapes): 13.0 × 6.5 × 6.7 in (≈ 330 × 165 × 170 mm)
