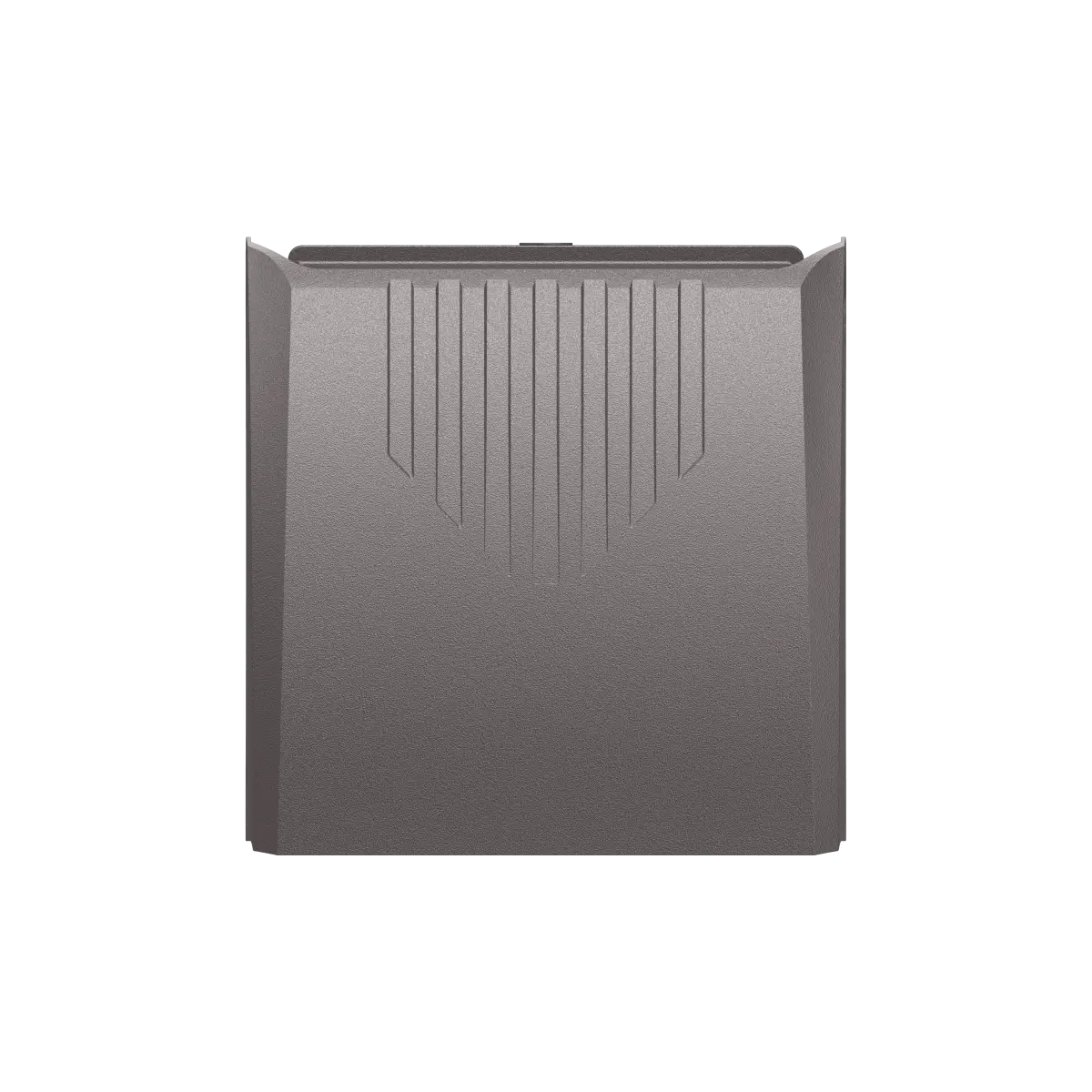

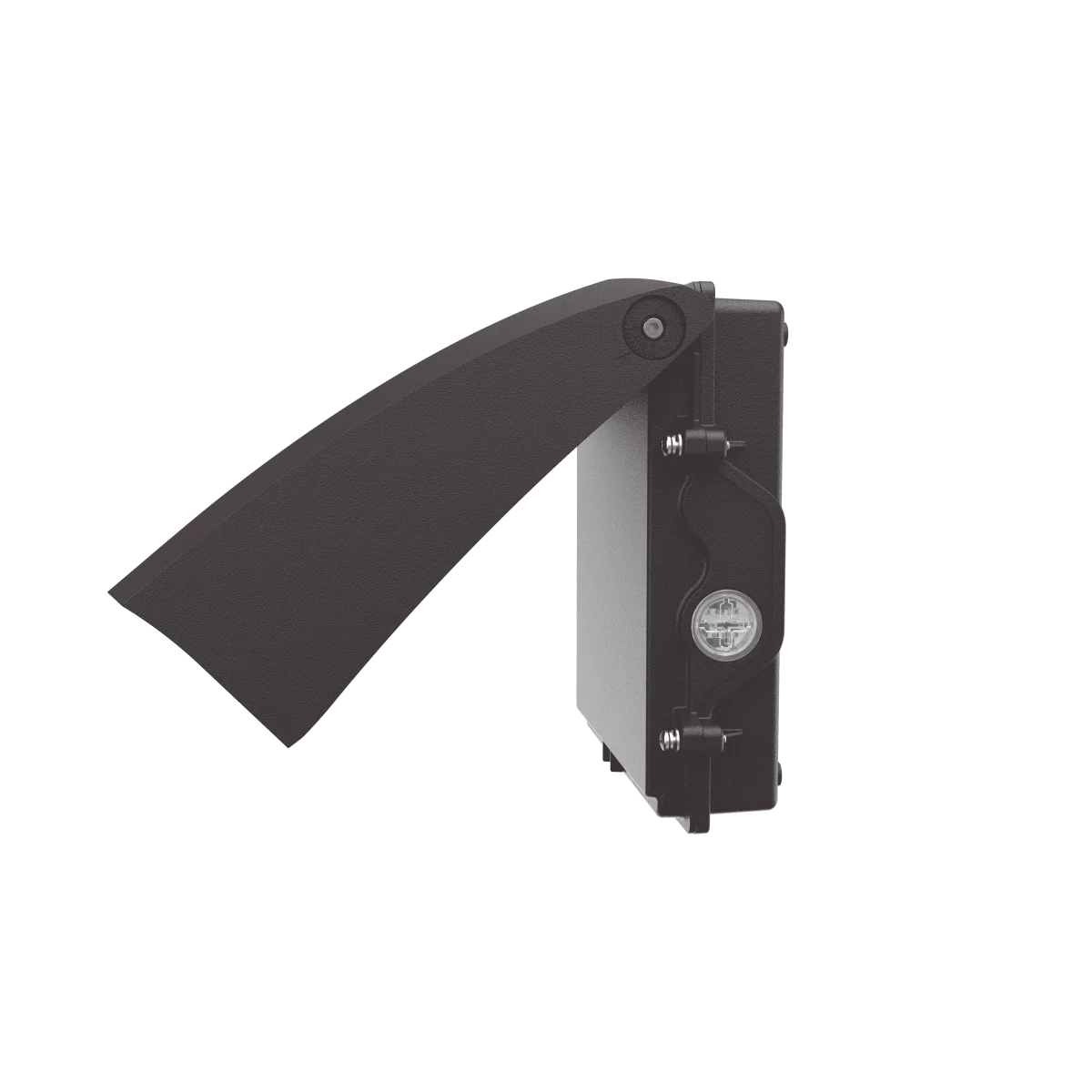

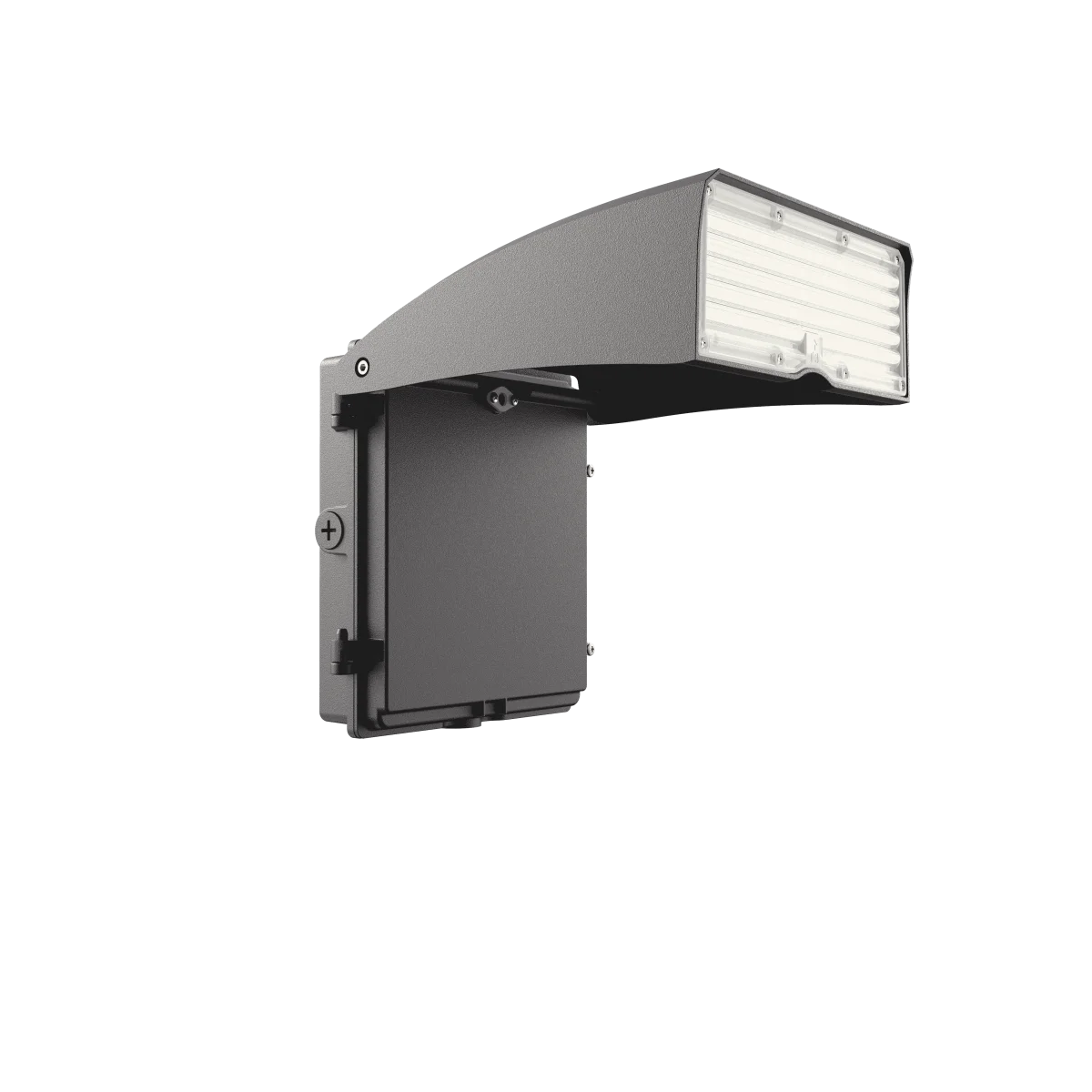

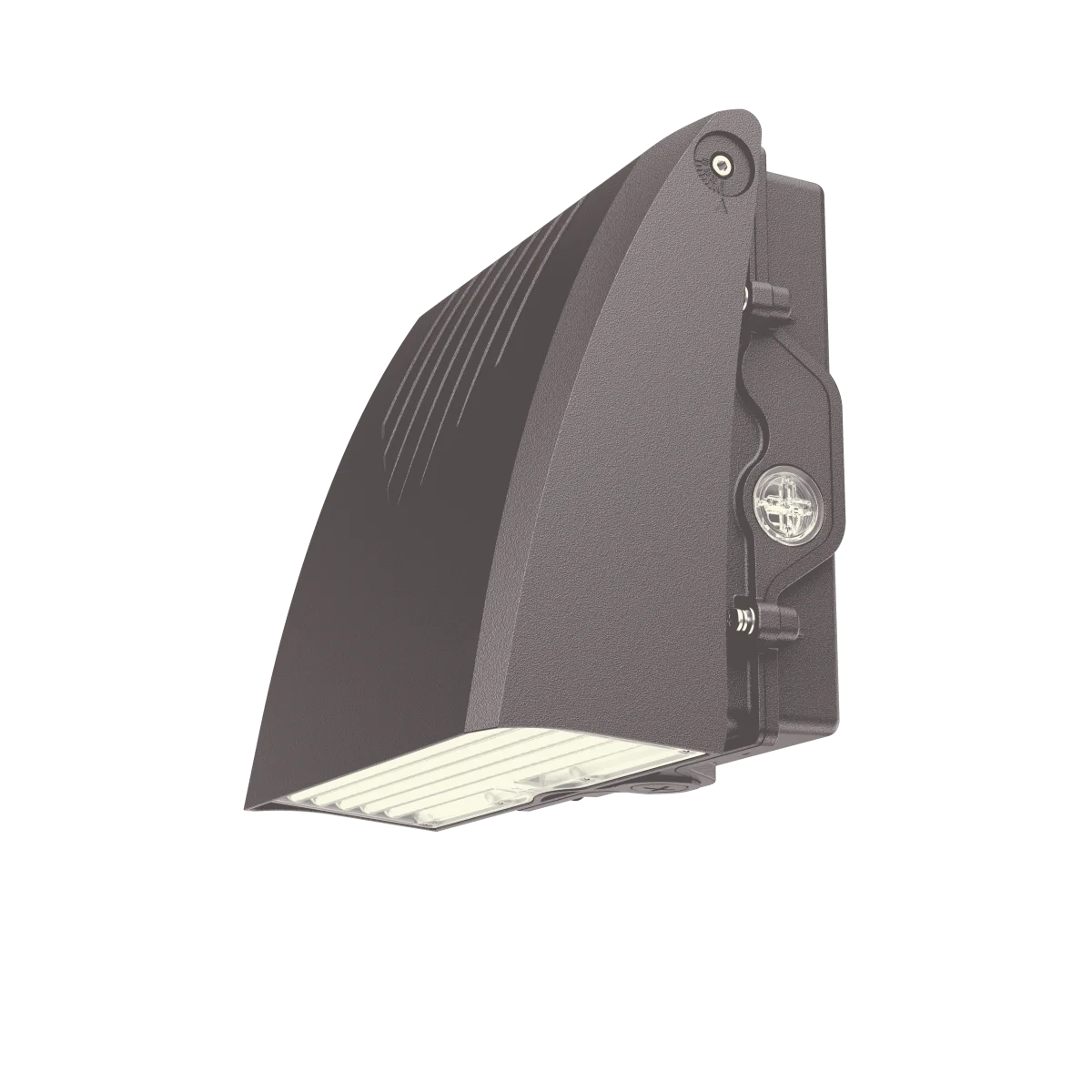

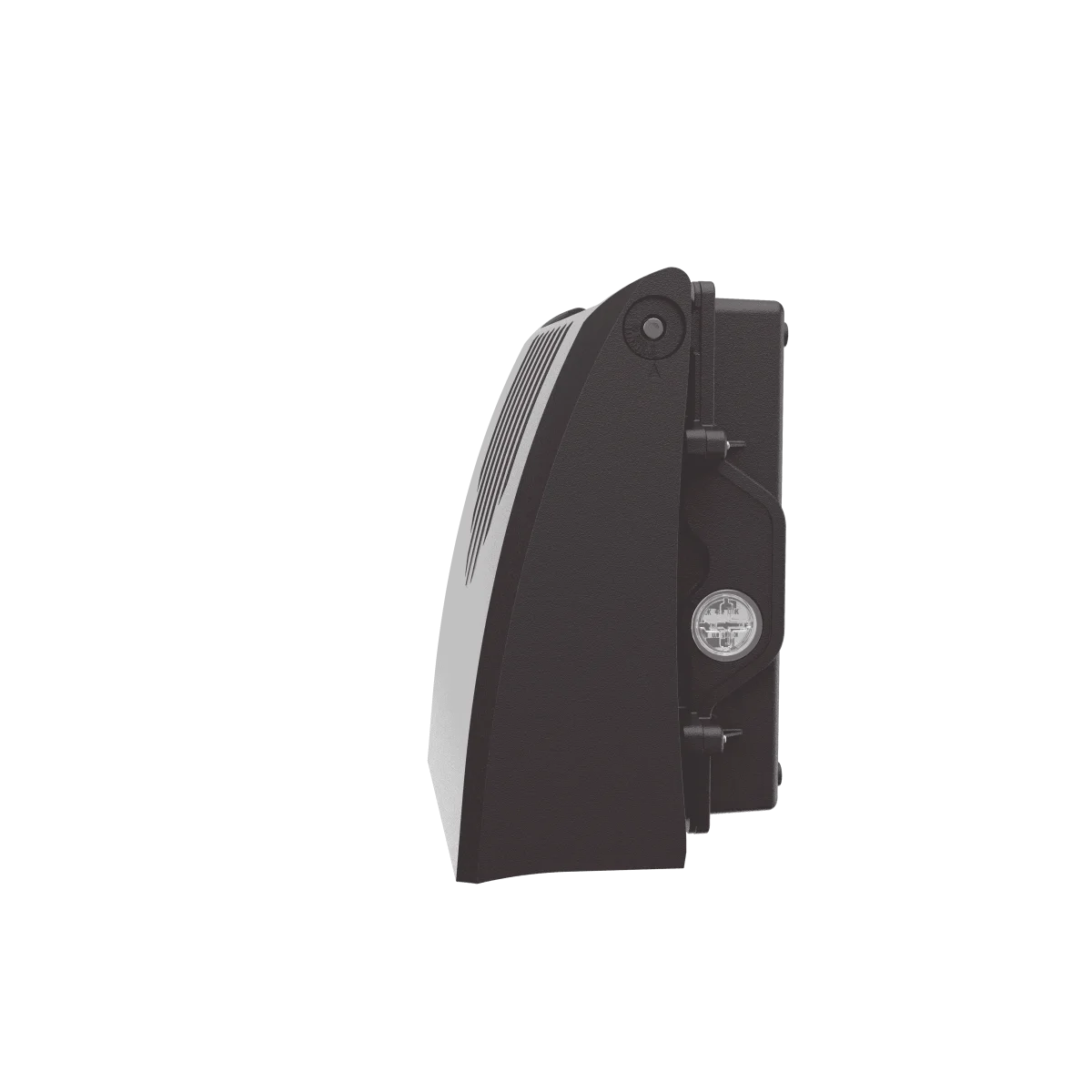

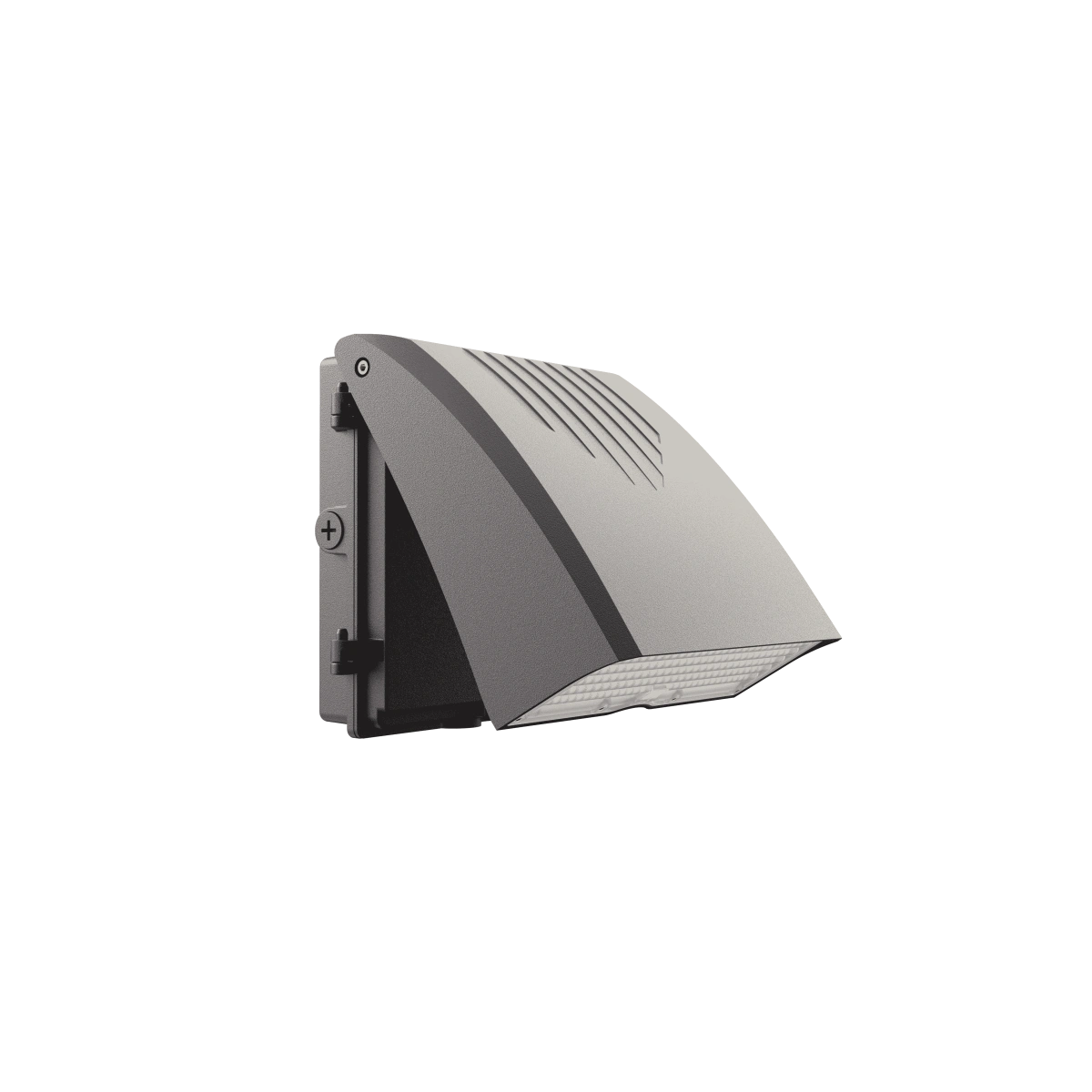

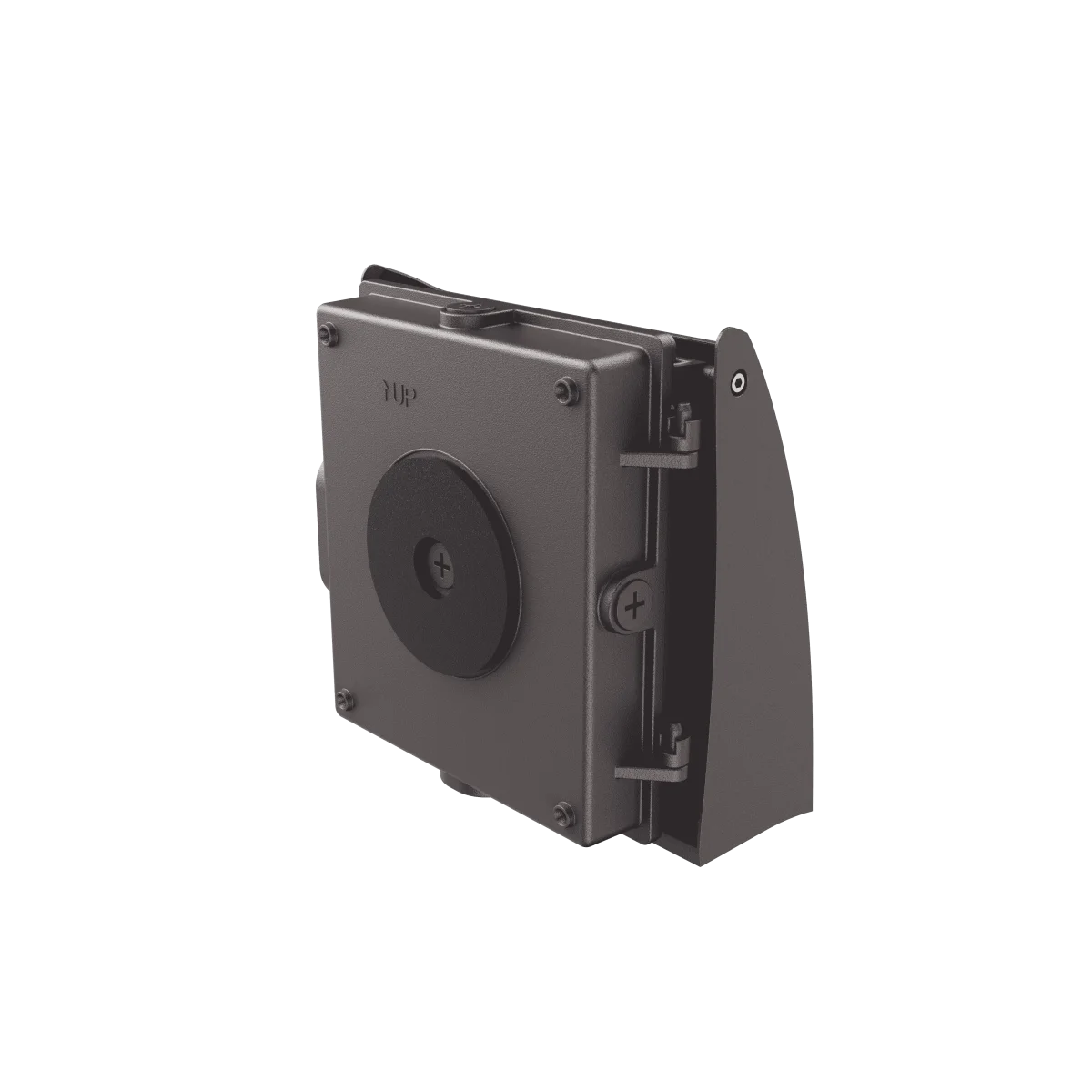

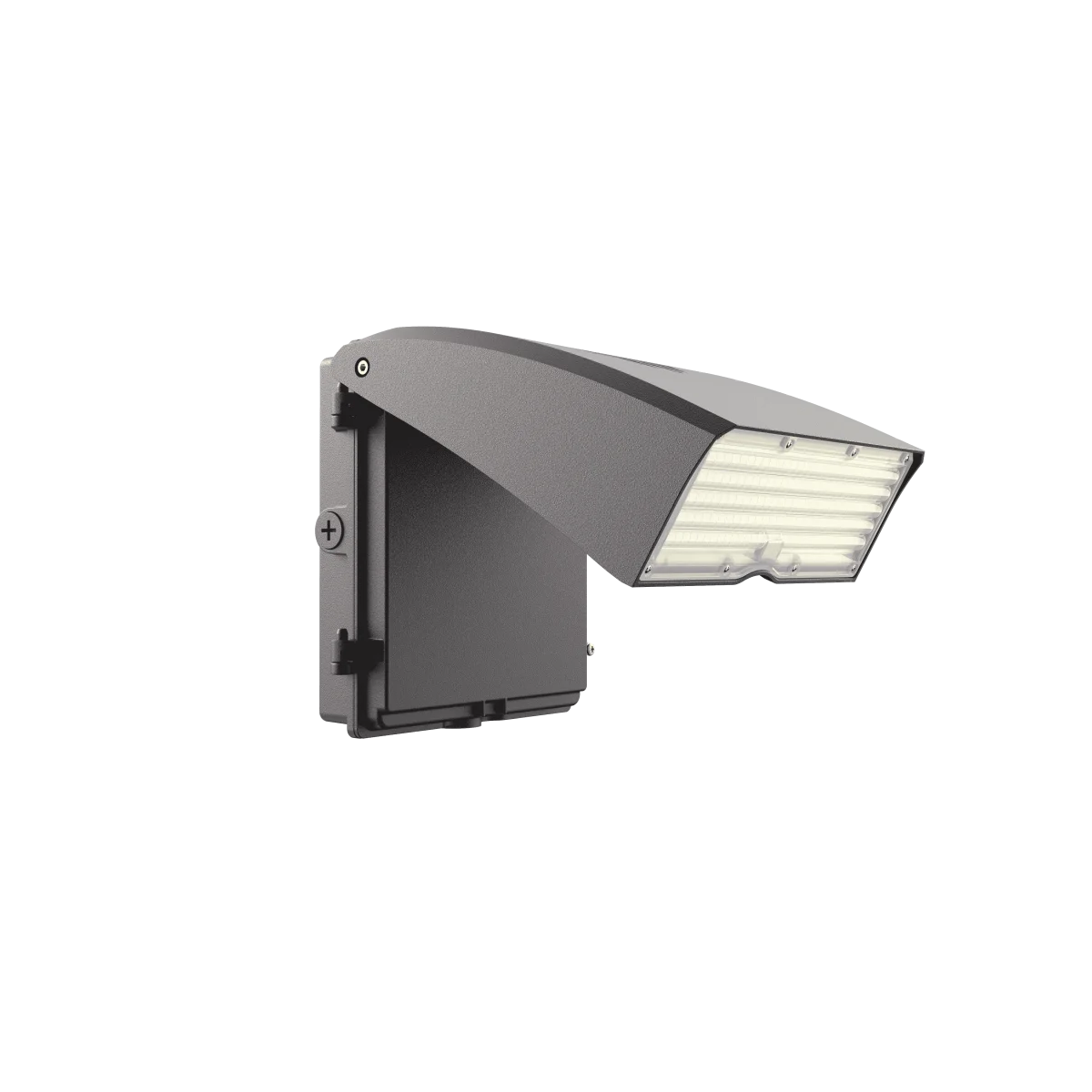

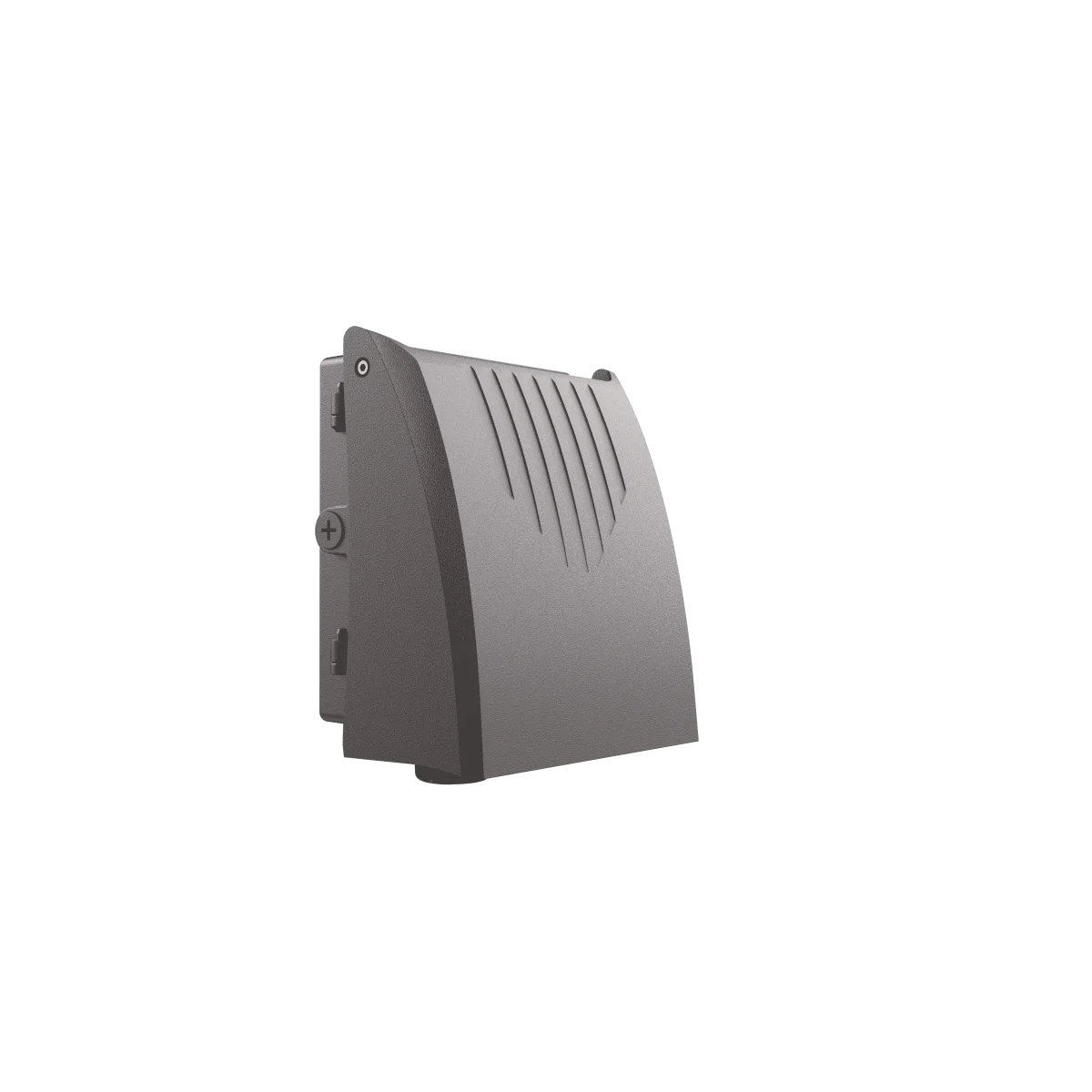

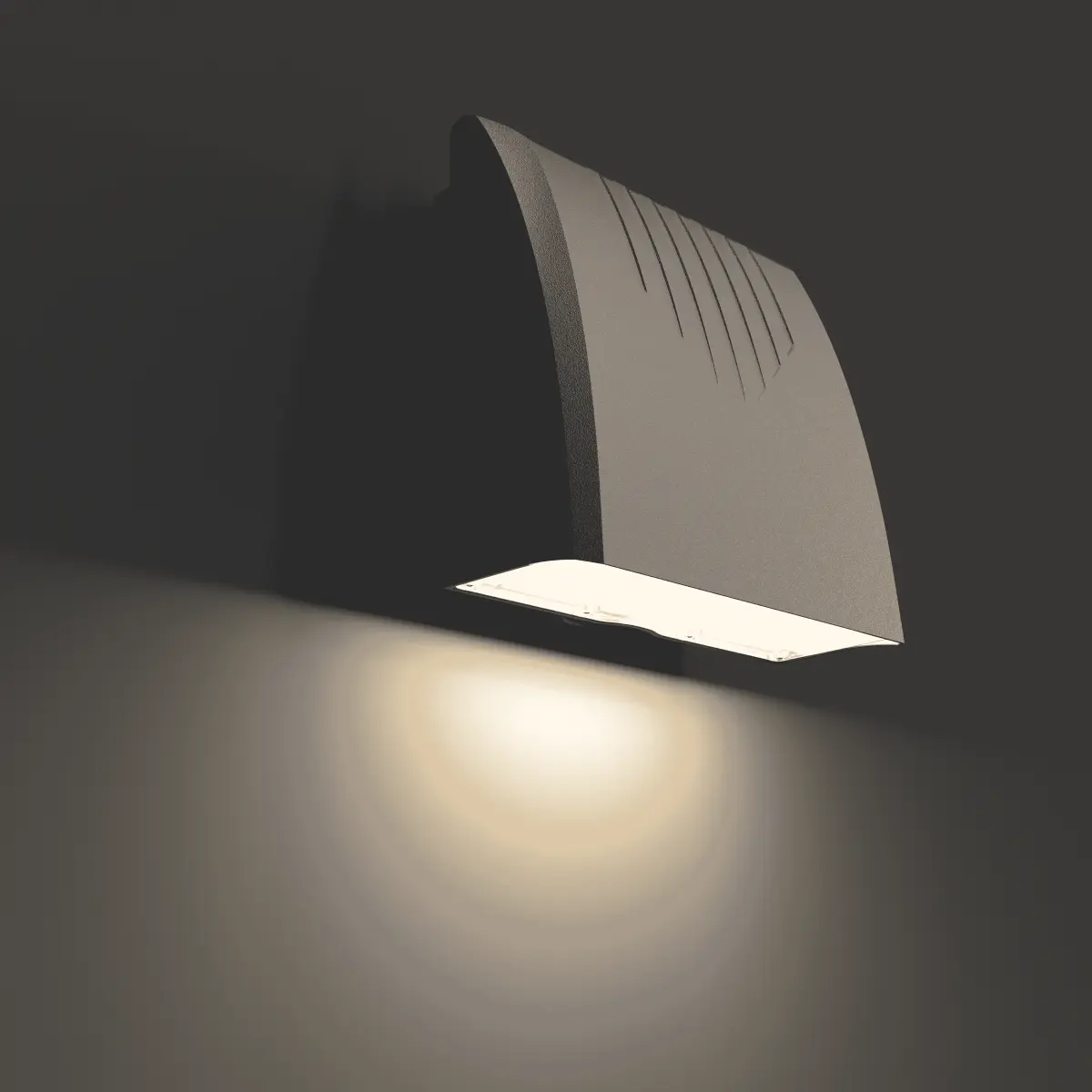

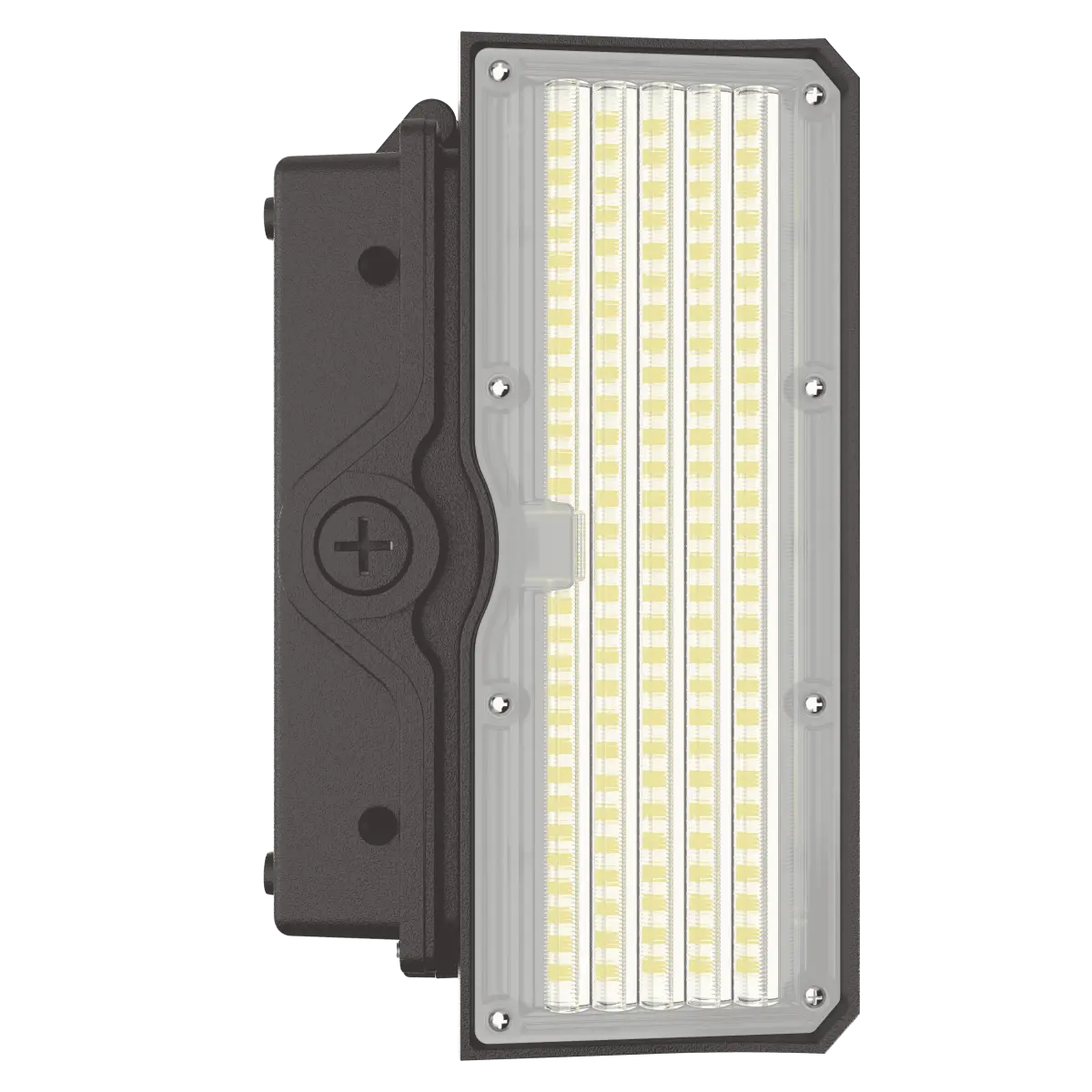

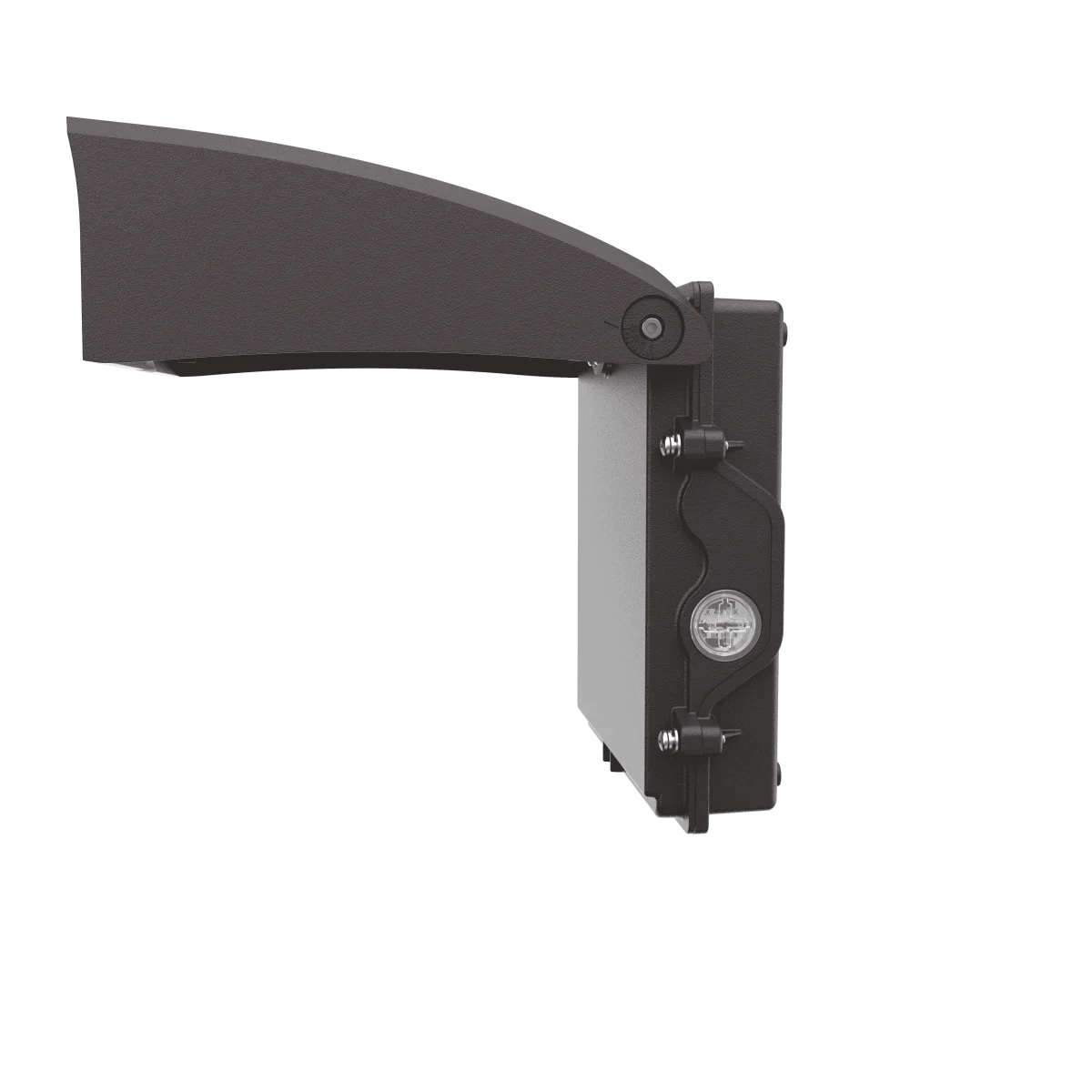

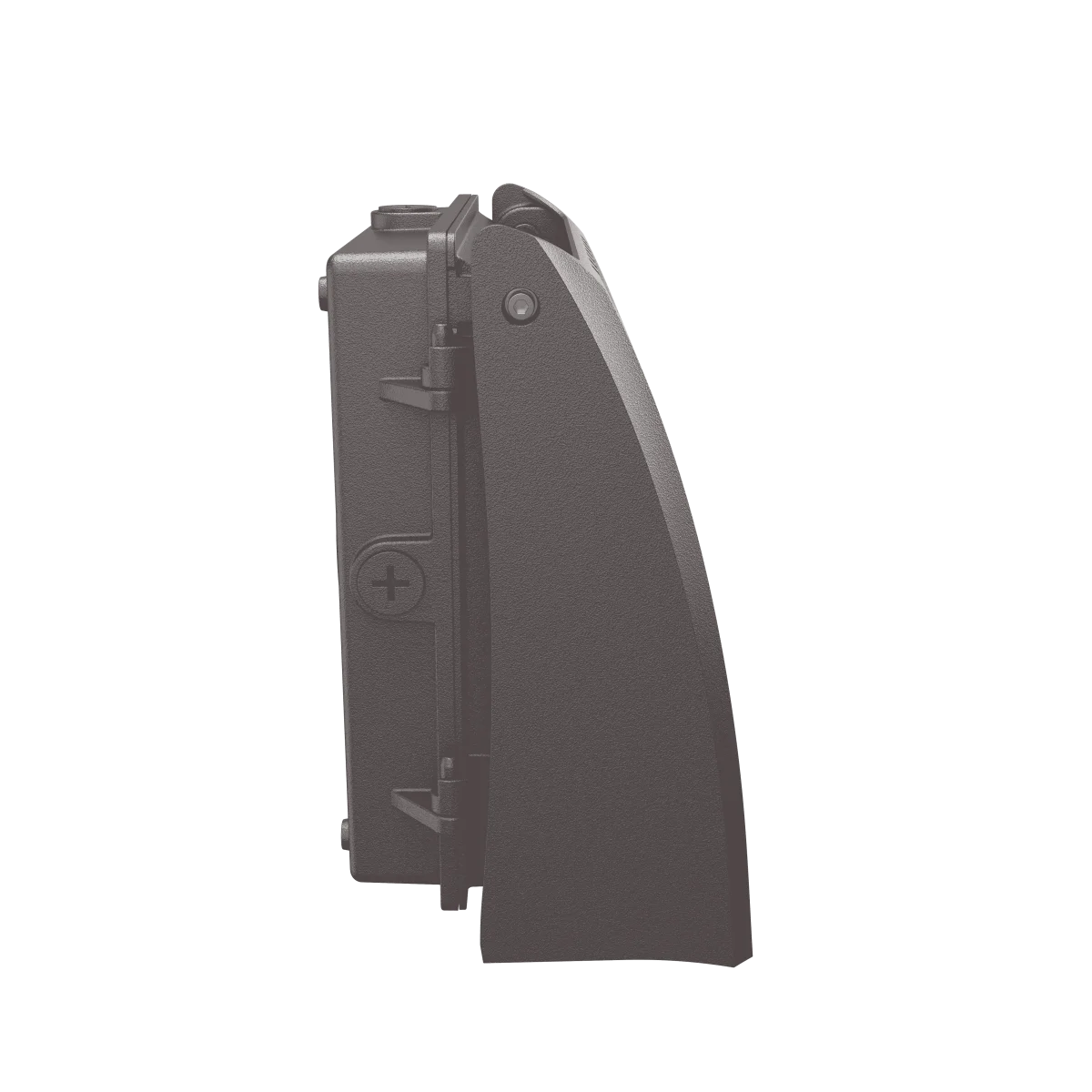

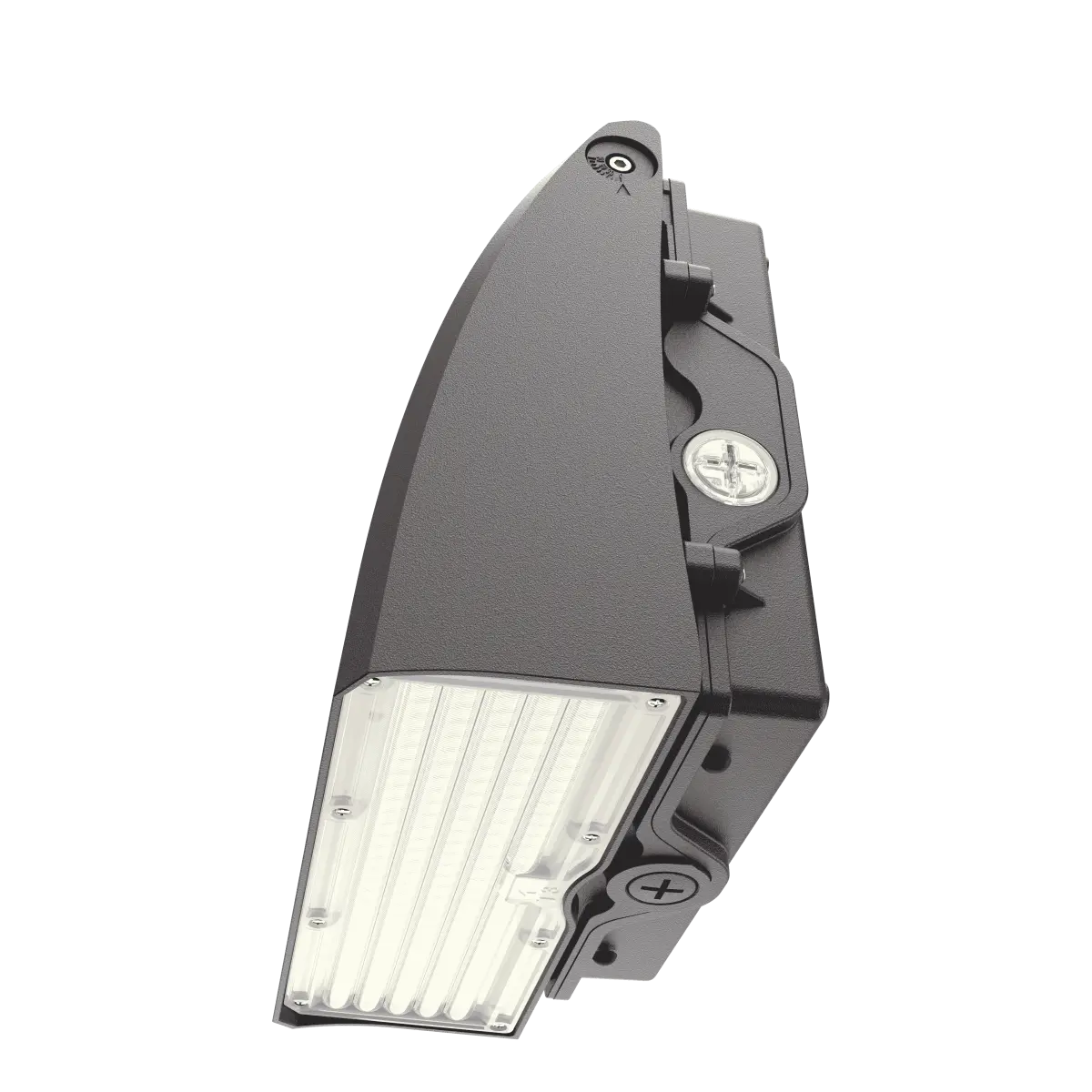

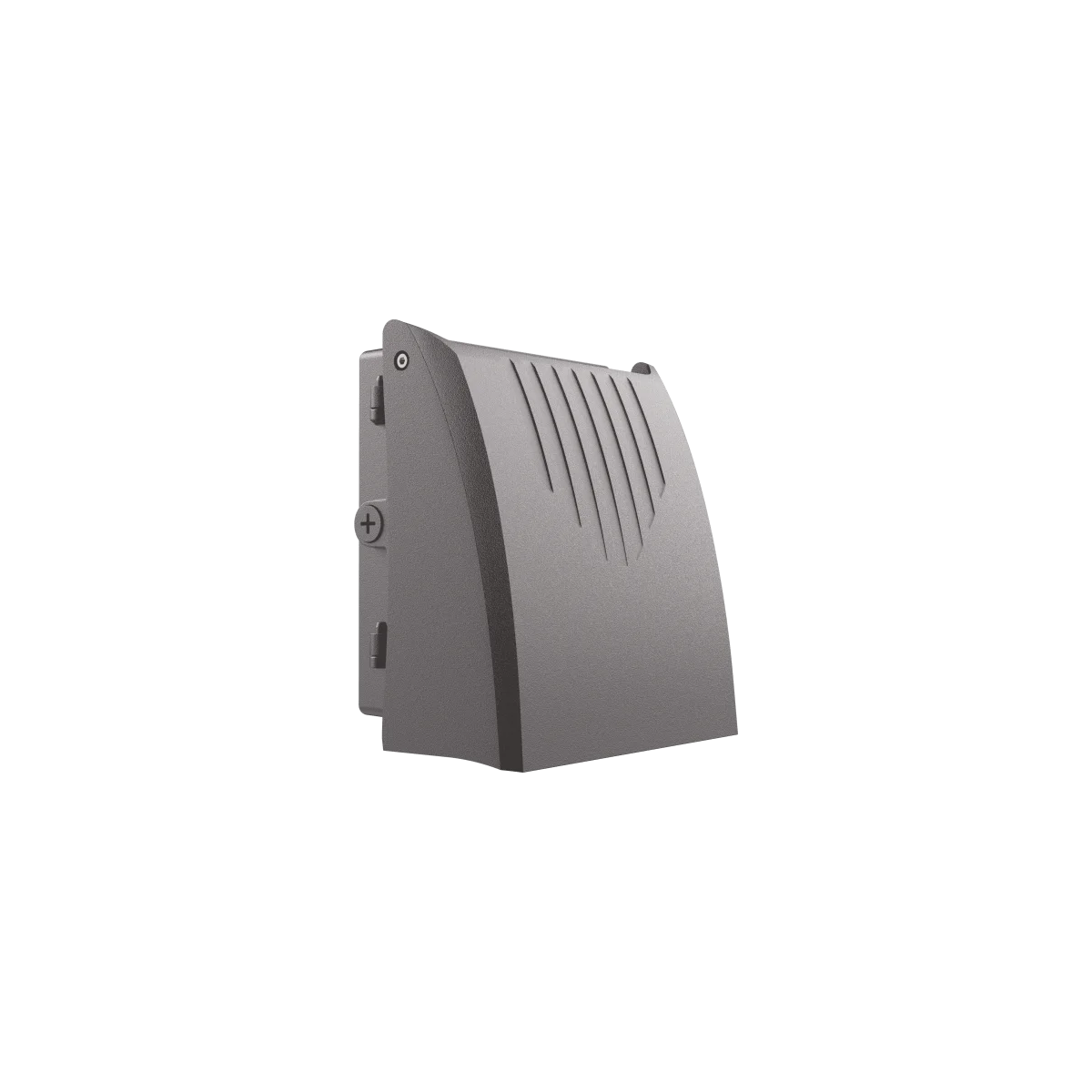

LED Adjustable Wall Pack – G5 Series

Description

The LED Adjustable Wall Pack G5 Series is a versatile, high-performance exterior fixture designed for pathways, alleys, façades, landscaping, and commercial building exteriors. The fixture features a fully adjustable 0° to 90° beam angle, enabling precise illumination for targeted areas or wide coverage. Its 3-in-1 selectable system allows customization of CCT (4000K / 5000K / 5700K), wattage (60W / 90W / 100W / 120W), and photocell ON/OFF, making it adaptable to various applications while reducing SKU complexity. With an efficacy up to 150 lm/W, DLC listing, and IP65 waterproof rating, the luminaire ensures durability, energy efficiency, and reliable performance in harsh outdoor environments. Optional features include microwave motion sensors and emergency battery backup. Additional Specifications Construction: Housing: Die-cast aluminum (ADC12) Lens: Polycarbonate Finish: Bronze (default), custom finishes optional Electrical: LED Type: SMD2835 THD: <20% Power Factor: ≥0.90 Surge Protection: 6kV L/N 6kV L/N-P Frequency: 50/60Hz Environmental: IP Rating: IP65 Operating Temperature: –40°F to 122°F Lifetime: L70 ≥ 50,000 hrs Dimensions: 10" Model: 9.76" × 5.88" × 10.05" (248 × 147 × 255.4 mm)
