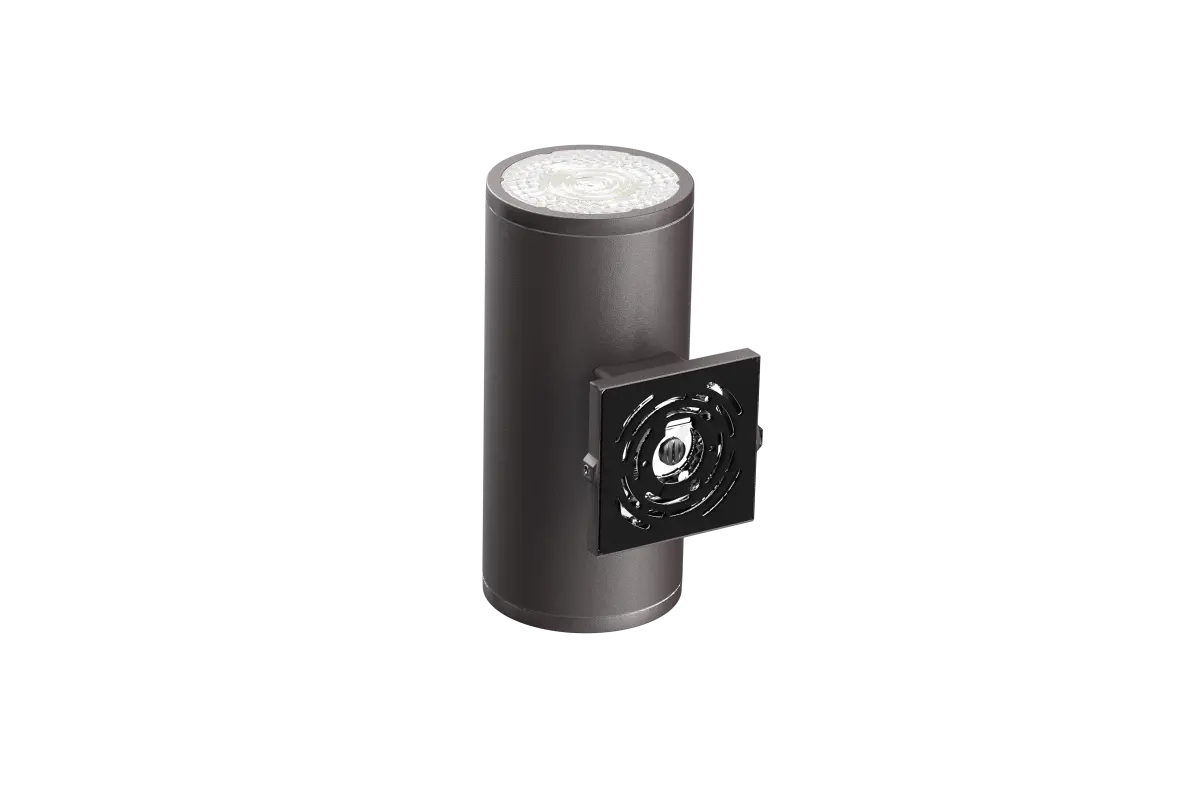

LED Wall Mount Cylinder – G6 Series 6-inch

Description

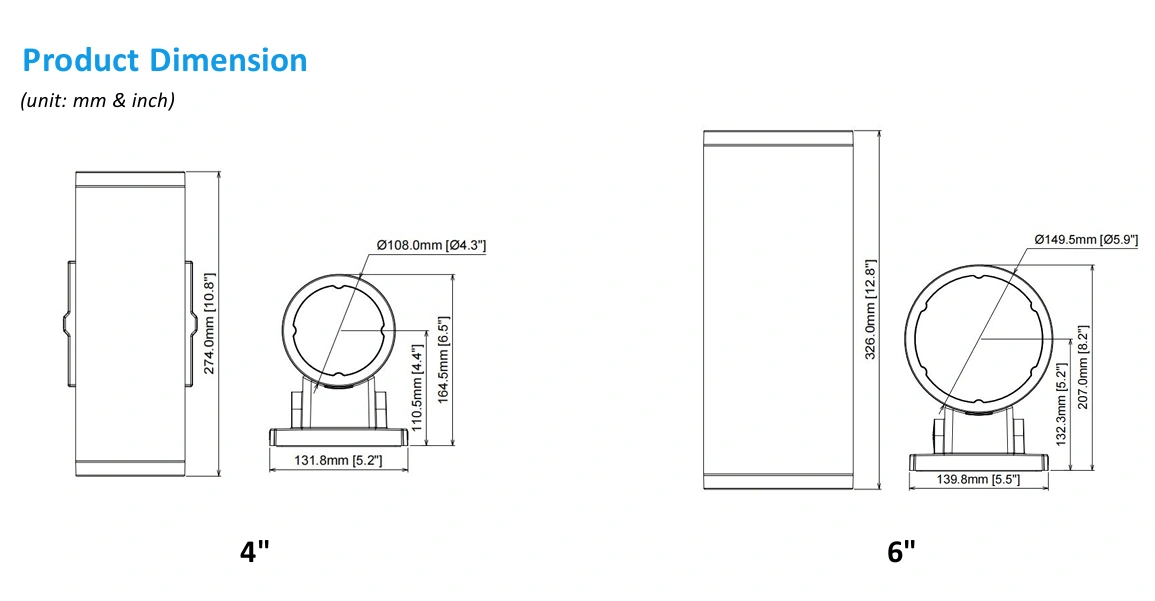

The LED Wall Mount Cylinder G6 Series is a highly flexible exterior fixture featuring 3 selectable wattages, 3CCT tuning, 3 beam angles, and 3 lighting directions (Up / Full / Down)—all in one SKU. It includes a built-in dusk-to-dawn photocell, a field-adjustable optic system (25° / 40° / 60°), and durable construction suitable for architectural, residential, and commercial facades. Designed with a die-cast aluminum housing, polycarbonate lens, and IP65 wet-location rating, this cylinder is ideal for entryways, facades, awnings, wall washing, and decorative lighting. With selectable performance modes and 0–10V dimming support, this fixture delivers efficiency up to 150 lm/W, making it a powerful and elegant outdoor lighting option. Additional Specs Construction: Housing: Die-cast aluminum (6063) Lens: Polycarbonate Finish: Bronze (standard), optional Black (BL) / White (WH) Mounting Plate: Die-cast aluminum Electrical: LED Type: SMD2835 THD: <20% Power Factor: ≥0.90 Frequency: 50/60 Hz Surge Protection: 2kV (20W) 4kV (36W) Environmental: IP Rating: IP65 (Wet Location) Operating Temp: −35°F to 113°F Storage Temp: −40°F to 158°F EM Version: 41°F to 86°F Dimensions: Page 4 provides dimensions: 4" Model: 6.5" × 5.2" × 10.8" 6" Model: 8.2" × 5.9" × 12.8"
