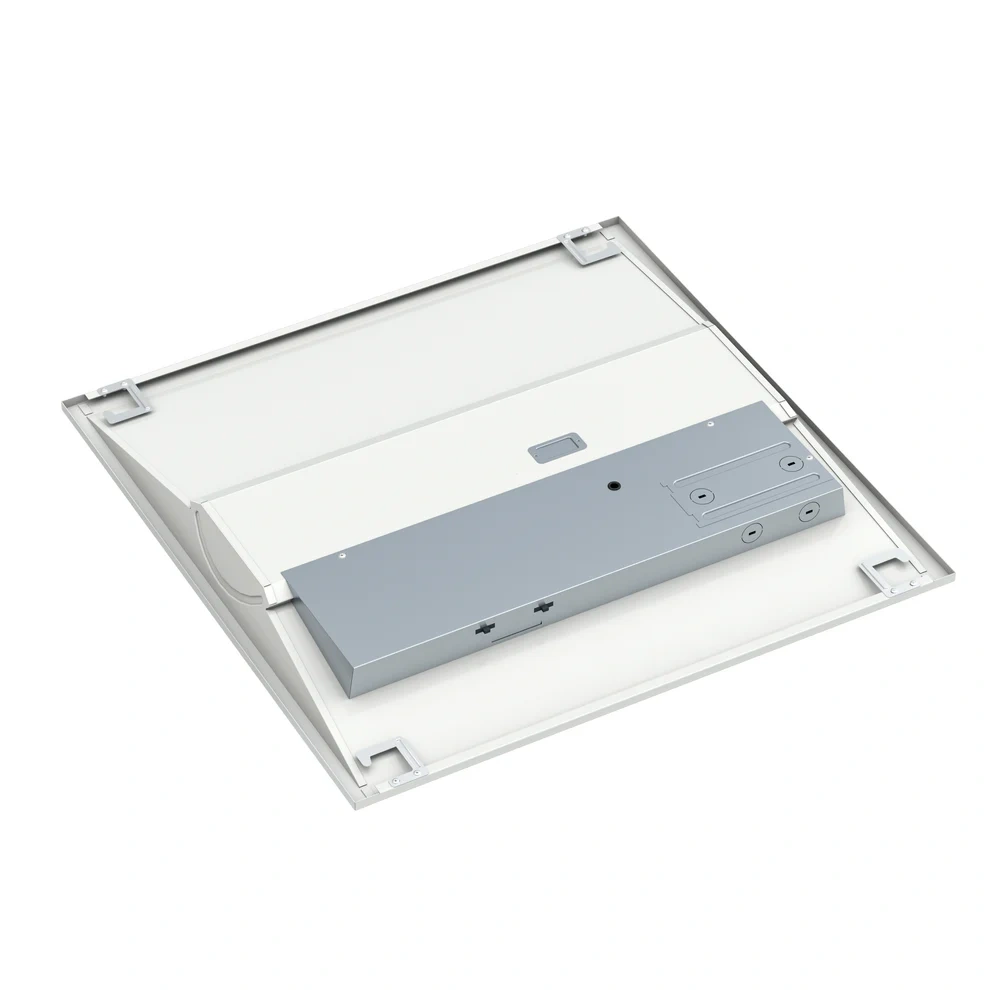

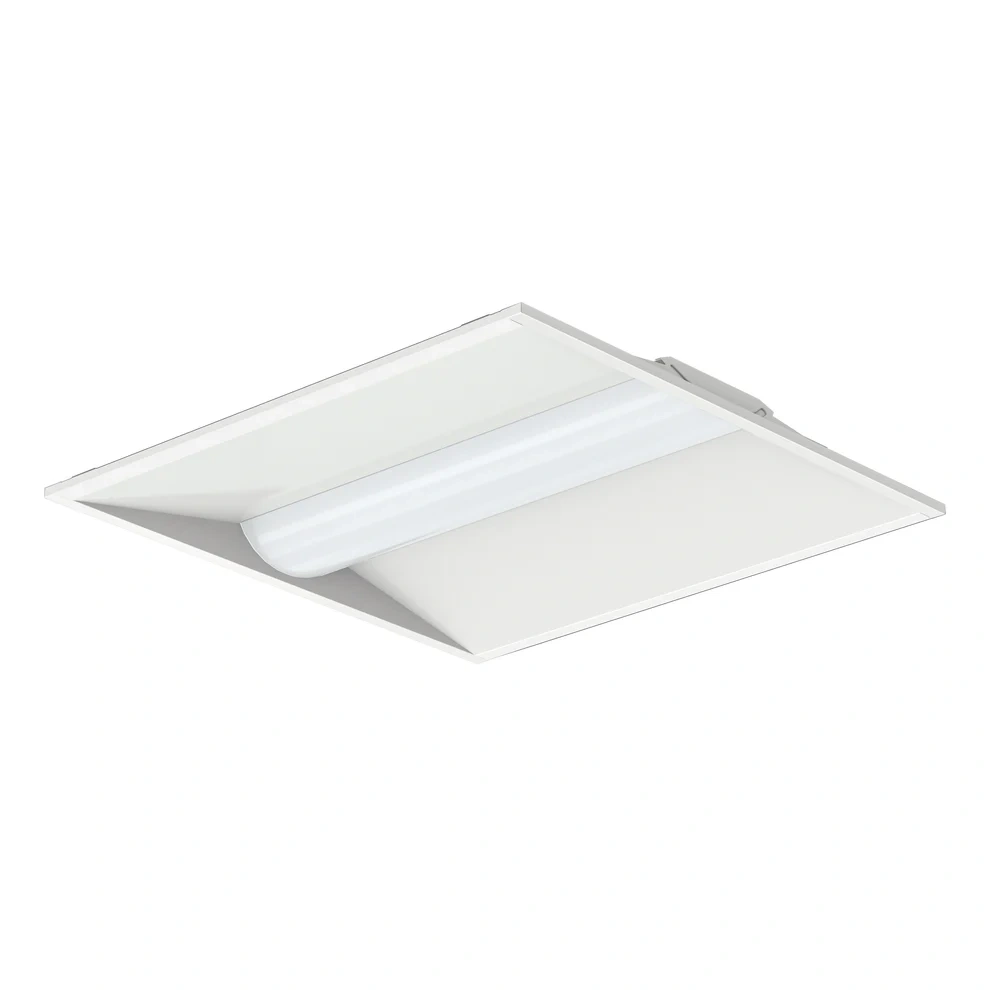

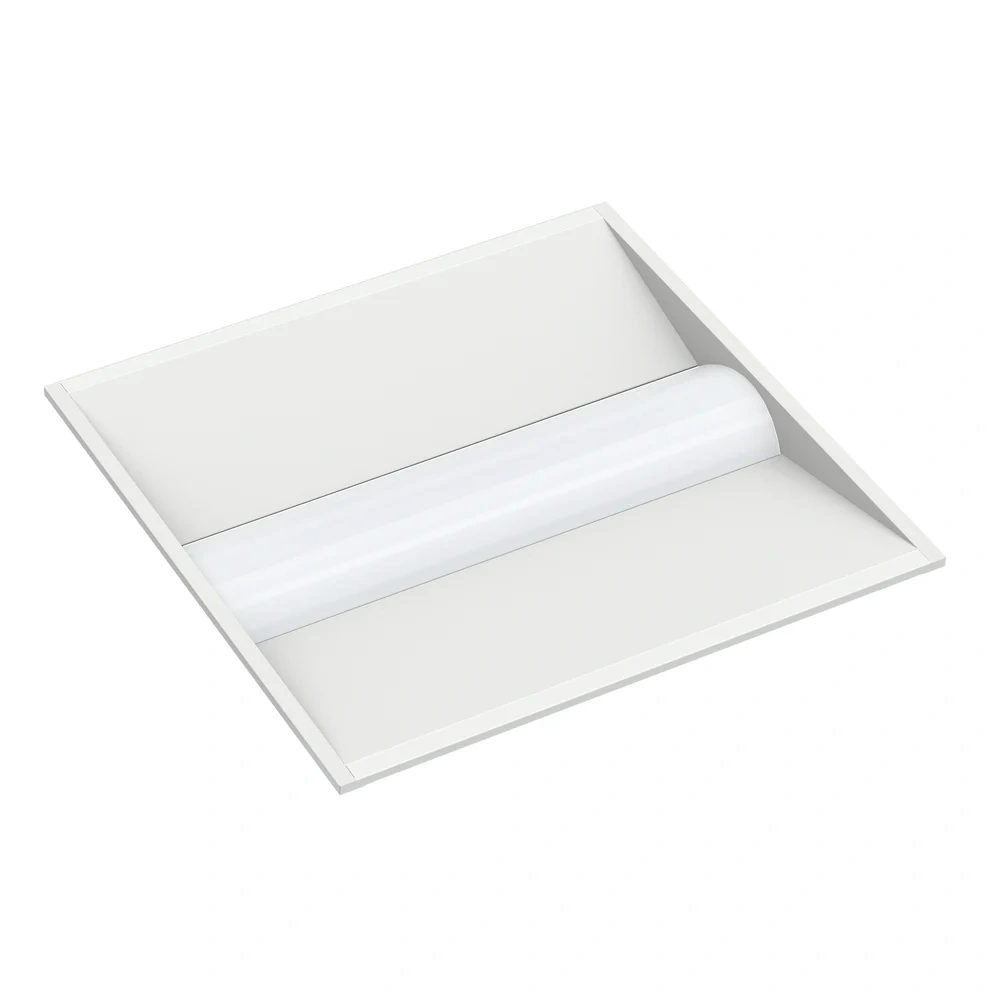

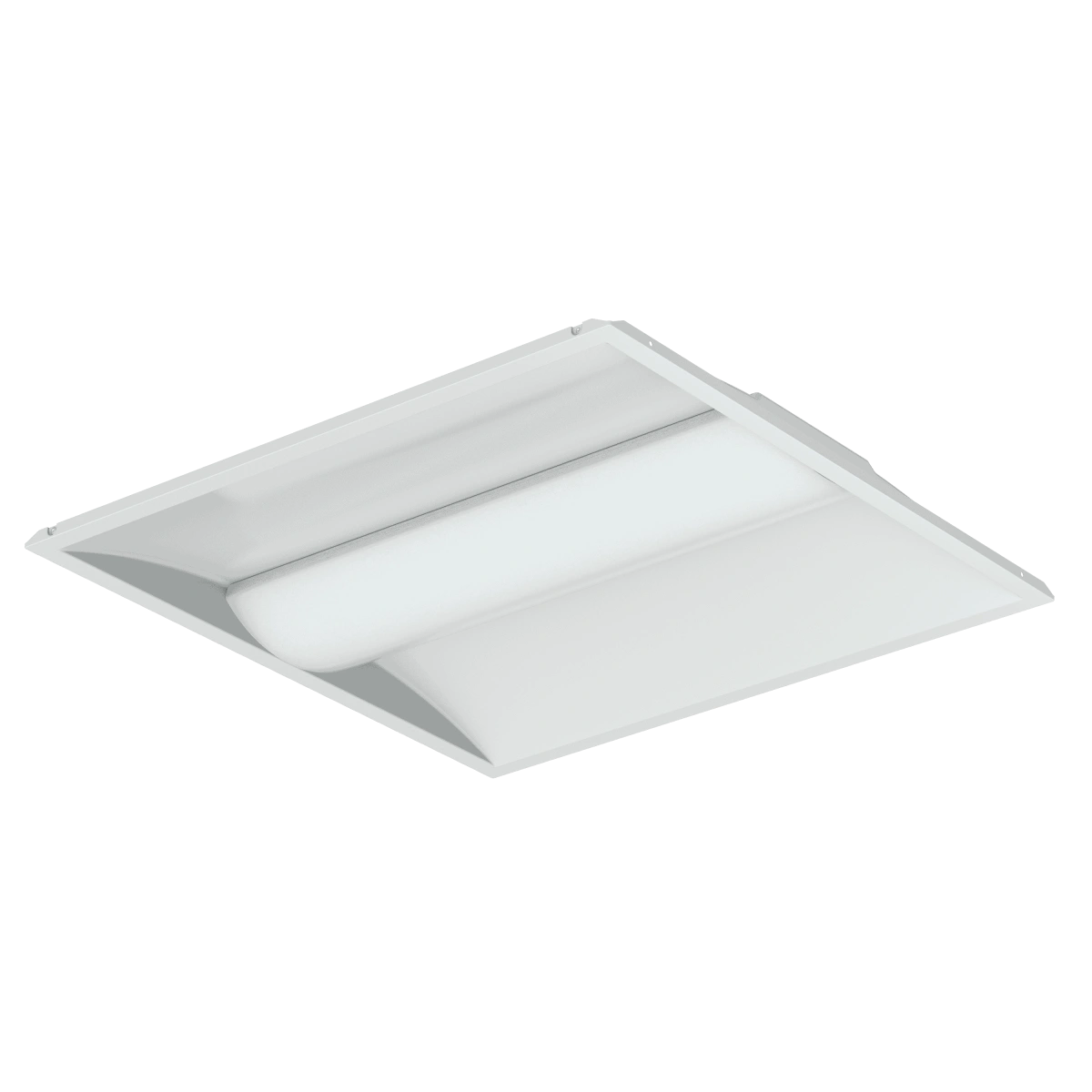

LED Troffer G3 2x2 65W 160lm/W 10400lm 5 Powers & 5 CCTs Adjustable

Description

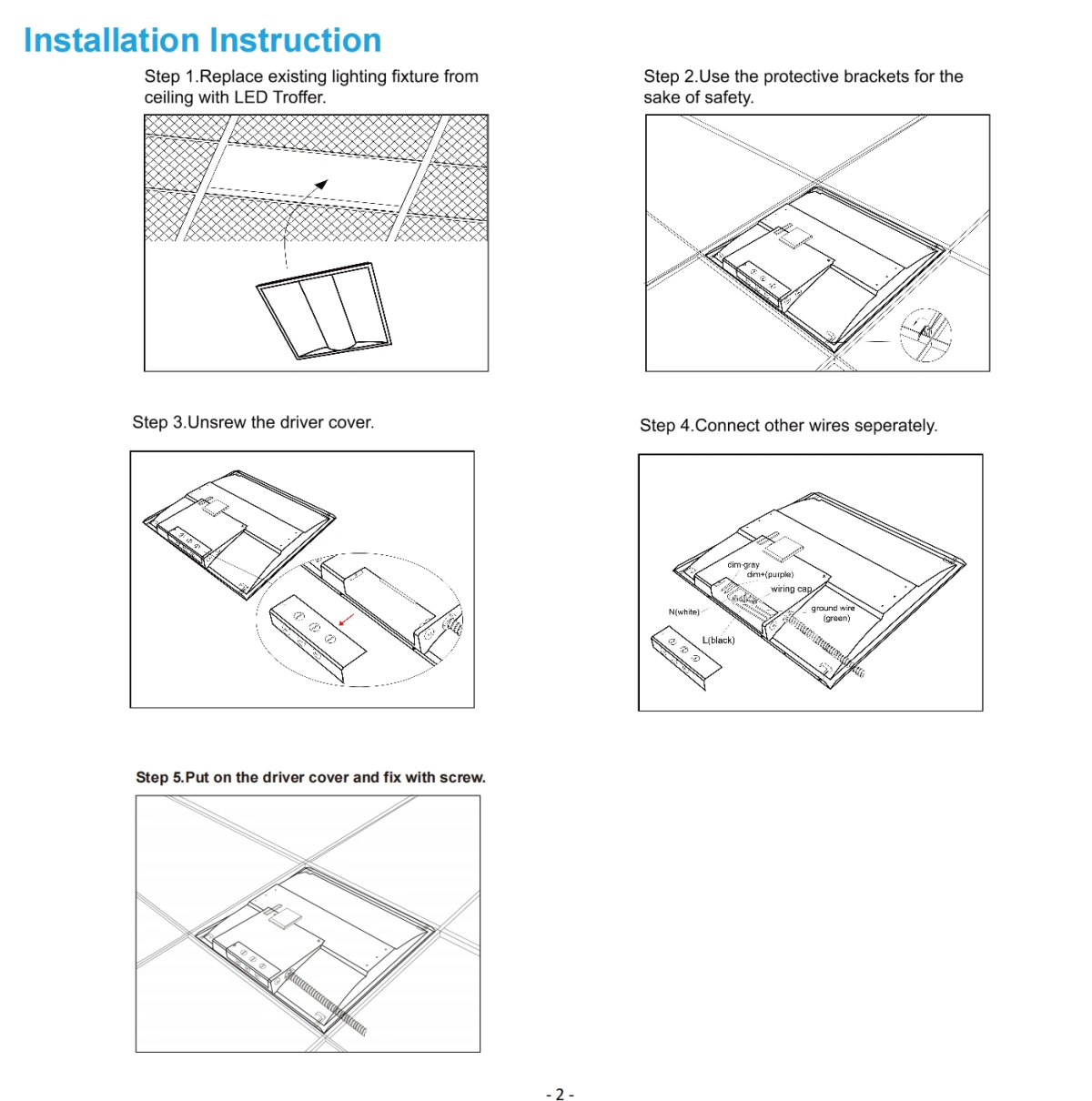

Construction ·1.85-inch-thickness prefabricated 24-gauge metal sheet housingwith powder coated finish. ·High efficiency, maintenance-free LED chamber. ·Four auxiliary fixture end suspension points provided ·Tool-free removable wire way cover Finish ·95% High reflectance baked with matte white finish. ·Formulated for high durability and long-lasting color LED CHARACTERISTICS ·SMD2835 LED's Long-life, high-efficacy ·CCT Options:3000K/3500K/4000K/5000K/6500K, CRI>80,R9>0 ·Lifespan 60,000-hour LED lifespan based on lES LM-80 resultsand TM-21 calculations OPTICS ·Highly transmissive Polycarbonate lens help diffuse the LED source pixilation, without compromising light output. ·UL 94-V0 flame retardant grade Mounting and installation ·Quick and easy installation by single person. ·Featured with an integral driver box for easy installation ·Attached grid clip with wire-tie hole provided for seismic wire ·Certified for direct contact with insulation Compliance ·ETL Listed ·Suitable for damp locationsIC rated for direct contact with insulation. ·TM-21 Projected L70 life >50,000 hours ·LM-79, LM-80 testing performed in accordance with lESNAstandards. ·DesignLights Consortium® Qualified and classified for DLC Premium. Electrical ·Power Factor:> 0.9 nominal. ·Input Power: Stays constant over life ·Input Voltage:120-277V 60Hz ·Operating Temperature Range:0'C-+ 35°C (32°F -+ 95°F). ·Total Harmonic Distortion:<20% ·12V DC 200ma Options Emergency Battery Options ·Optional 120-277V integral emergency battery pack available in 8W-or 15W ·90-minute backup period for code compliance ·Test switchwith laser pointer allows safe testing from floor Integrated Controls ·Dimming: 0%-100% (Varies by controller) ·Sensor: Microwave Sensor /PR Sensor, Daylight or Daylight Harvest Options Warranty ·Five-year Limited Warranty.
