LED Shoebox Light – TCP Series 300W

Description

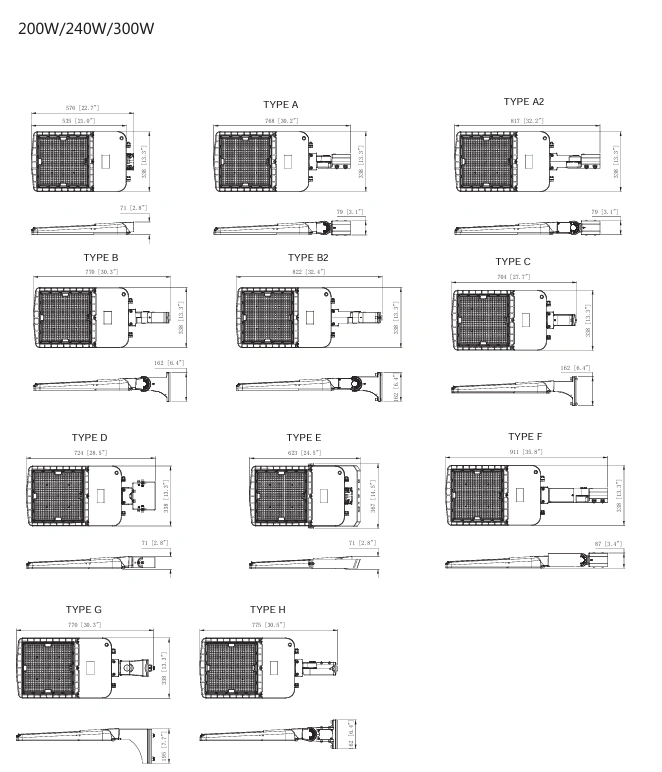

The LED Shoebox Light TCP Series is a robust, high-performance outdoor area lighting fixture designed for parking lots, roadways, campuses, and large open spaces. It features rotatable optical lenses (Page 5 diagram) that allow angle adjustment by loosening 24 screws, rotating the lens, and reinstalling it. The luminaire offers selectable wattage models: 70W / 100W / 150W (per SU-SB-150W-TCP) 200W / 240W / 300W (per SU-SB-300W-TCP) It delivers 170 lm/W efficiency, IP65 wet-location rating, and >50,000 hours lifespan. The fixture supports a wide set of accessories, including photocell, shorting cap, surge protector, PIR sensor, microwave sensor, and Bluetooth motion sensor . Multiple mounting bracket types (A, A2, B, B2, C, D, E, F, G, H) are shown on pages 2–3, enabling installation on round poles, square poles, slip-fitters, trunnion, or yoke mounts. A durable die-cast aluminum housing ensures excellent heat dissipation and long-lasting operation.
